The first time I tried brazing copper with MAPP gas, I was a little nervous. I had done plenty of soft soldering before, but brazing felt like stepping into a whole new level. The flame was hotter, the rods were different, and the timing had to be just right.
But once I got the hang of it, I realized how strong and clean the joints could be—especially in high-pressure or high-heat applications where regular solder just wouldn’t cut it.
From my own hands-on experience, brazing copper with MAPP gas is totally doable for DIYers and pros alike—you just need the right tools, a little know-how, and a steady hand.
I’ll walk you through the exact process I use, including tips I’ve learned the hard way, so you can get strong, leak-free joints without the stress. If you’re working on plumbing, HVAC, or a custom project, this method can give your copper work a seriously professional edge.

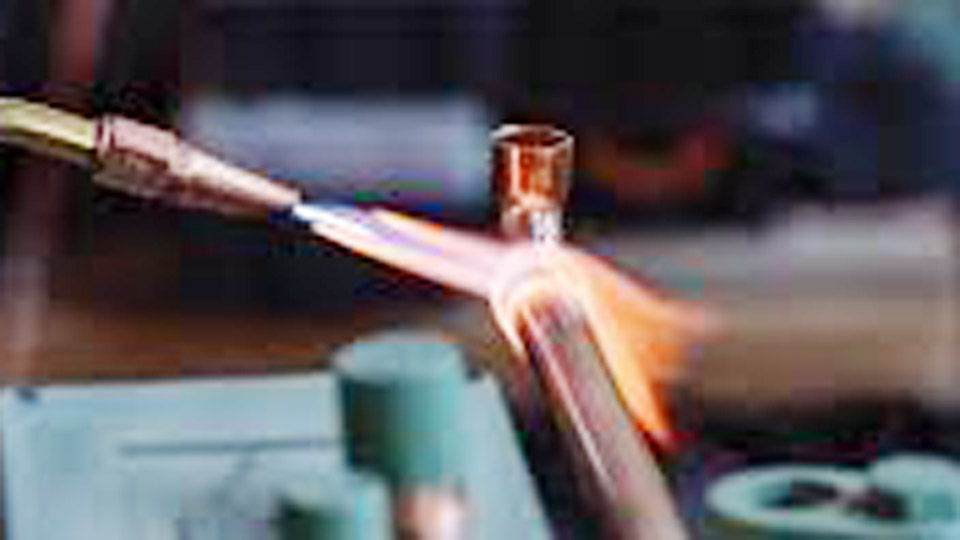

Image by ambrocontrols
Why Use MAPP Gas for Brazing Copper?
Brazing copper with MAPP gas is one of my go-to methods because it’s effective and accessible. MAPP gas burns hotter than propane, reaching up to 3600°F, which is plenty for melting brazing rods and joining copper pipes or fittings.
I’ve used it for water lines, gas lines, and even decorative copper projects. It’s great for DIYers because MAPP gas torches are affordable, portable, and easy to find at hardware stores.
Compared to oxy-acetylene, MAPP gas is simpler to handle, though it’s not as precise. The challenge is controlling the heat to avoid overheating the copper, but with the right technique, you’ll get strong, clean joints. Let me walk you through why MAPP gas works so well and how I use it.
Basics of Brazing Copper with MAPP Gas
Before we dive into the how-to, let’s cover what brazing copper with MAPP gas is all about. When I first picked up a MAPP gas torch, I was a bit nervous about the intense flame.
But it’s not as scary as it looks. Brazing uses a torch to heat the copper, and a filler metal (usually a brazing rod) melts to flow into the joint, bonding the pieces together.
The filler melts at a lower temperature than copper (which melts at 1984°F), so the pipe stays intact. MAPP gas provides the heat needed to melt the filler, typically around 1100–1500°F.
For copper pipes, you need clean surfaces and steady heat to avoid leaks or weak joints. Here’s what you’ll be working with:
- MAPP Gas Torch: Heats the joint. I use a handheld torch with a trigger for control.
- Filler Metal: A brazing rod, like copper-phosphorus or silver alloy.
- Flux: A paste to clean the copper and help the filler flow (sometimes optional).
- Copper Pieces: Pipes or fittings, like 1/2-inch or 3/4-inch water lines.
- Cleaning Tools: Wire brushes or emery cloth to prep the copper.
- Safety Gear: Gloves, tinted glasses, and a fire-resistant jacket.
Let’s go through my step-by-step process, straight from my shop.
Step-by-Step Guide to Brazing Copper with MAPP Gas
Here’s how I braze copper with MAPP gas to create strong, leak-free joints. This process works for plumbing, HVAC, or decorative projects, like joining a 1/2-inch copper pipe to a fitting. Follow these steps, and you’ll be brazing like a pro.
Step 1: Gather Your Tools and Materials
Before I light my torch, I make sure I have everything I need. Here’s my checklist:
- MAPP gas torch with a swirl tip for a stable flame.
- Brazing rods (I use copper-phosphorus rods like BCup-5 for most copper joints).
- Flux (borax-based paste, if using silver alloy rods or for cleaner joints).
- Wire brush or emery cloth for cleaning.
- Safety gear: Welding gloves, tinted safety glasses (shade 3–5 for MAPP gas), and a fire-resistant jacket.
- Fire extinguisher and a bucket of water for safety.
- Copper pipes and fittings (like 1/2-inch or 3/4-inch pipes, elbows, or couplings).
- Pipe cutter for clean, square cuts.
- Deburring tool or sandpaper to smooth pipe ends.
- Degreaser (like acetone) to clean surfaces.
- Clamps or pliers to hold pieces if needed.
- Heat-resistant mat or firebrick to protect your workspace.
I keep my tools organized to avoid interruptions. One time, I ran out of brazing rods mid-job, and it was a hassle.
Step 2: Prepare the Copper Surfaces
Clean copper is the foundation of a good braze. Copper pipes and fittings can have tarnish, dirt, or oils, which block the filler. I start by cutting the pipe to length with a pipe cutter to get a clean, square edge. I deburr the cut end with a deburring tool or sandpaper to remove sharp burrs.
I clean the outside of the pipe and the inside of the fitting with a wire brush or emery cloth until they’re shiny. Copper oxidizes fast, so I clean right before brazing.
If I’m using flux (for silver alloy rods or cleaner joints), I apply a thin layer to both the pipe and fitting with a small brush. For copper-phosphorus rods, flux isn’t always needed, but I sometimes use it to prevent oxidation.
Step 3: Dry the Pipe Thoroughly
For water or plumbing repairs, water in the pipe can ruin a braze by creating steam that blocks the filler. I turn off the water supply and drain the pipe completely. I wipe out any moisture with a rag or heat the pipe gently with the torch (on low) to evaporate water.
For new installations, I ensure the pipe is dry before starting. I once tried brazing a damp pipe, and the filler wouldn’t flow properly. Now, I double-check for dryness every time.
Step 4: Assemble the Joint
Before heating, I fit the copper pieces together. For example, if I’m brazing a 1/2-inch pipe to an elbow, I slide the pipe into the elbow until it’s fully seated. I check for a snug fit—a gap bigger than 0.002 inches can weaken the joint.
If the fit is too tight, I sand the pipe lightly; if too loose, I pick a better fitting. I align the pieces to avoid crooked joints. For complex setups, like a multi-joint water manifold, I use clamps or a jig to hold everything steady. I set the assembly on a firebrick to protect my workbench from the torch’s heat.
Step 5: Set Up Your MAPP Gas Torch
I use a handheld MAPP gas torch with a trigger for easy control. I attach a swirl tip for a stable, focused flame. I open the gas valve slightly and light the torch with a striker, adjusting the flame to a blue cone with a soft outer edge.
The flame should be hot but not roaring—too much gas wastes fuel and overheats the copper. I test the flame on a scrap piece of copper to make sure it heats evenly. MAPP gas burns hotter than propane, so I’m careful to keep the flame steady.
Step 6: Heat the Joint Evenly
Heating the joint is where MAPP gas shines. I hold the torch about 2–3 inches from the fitting and move it in a circular motion to heat evenly. Copper conducts heat fast, so I focus on the fitting first, since it’s thicker than the pipe.
I watch for the copper to turn a dull red, around 1100–1200°F, which means it’s hot enough for the filler to flow. If I’m using flux, it turns clear and bubbly at this temperature, which is a great cue.
MAPP gas is hot, so I’m careful not to overheat. Overheating can burn the copper or weaken the joint. One time, I lingered too long on a fitting, and it warped. But now, I heat slowly and keep the flame moving to avoid hot spots. For small pipes (1/2-inch or less), I use a smaller flame to stay precise.
Step 7: Apply the Filler Metal
When the joint is dull red, I touch the brazing rod to the edge of the joint. If the temperature’s right, the rod melts and flows into the joint by capillary action. I don’t put the rod in the flame—the copper’s heat should melt it.
I move the rod around the joint to create a smooth, even fillet. For a 1/2-inch fitting, I use about 1–2 inches of copper-phosphorus rod. If the filler doesn’t flow well, I reheat slightly or check my flux application.
Step 8: Cool and Clean the Joint
After brazing, I let the joint cool naturally. Quenching in water can cause stress cracks in copper, so I avoid it. Once it’s cool to the touch, I clean off any flux residue with a wire brush or warm water and a rag. Flux can corrode copper over time, so I’m thorough.
I inspect the joint for a shiny, even fillet with no gaps or cracks. A good braze looks like a clean silver ring around the joint, blending seamlessly with the copper.
Step 9: Test the Joint
Testing is critical, especially for water or gas lines. For water pipes, I turn on the water supply and check for drips with a dry cloth or paper towel. For gas or refrigerant lines, I pressurize the system with air or nitrogen (100–200 psi) and use a soap solution to look for bubbles at the joint.
If I find a leak, I drain or depressurize, clean the joint, and re-braze. I once skipped testing a water line, and a small leak caused a mess.
Choosing the Right Filler Metal and Flux
Picking the right brazing rod is key for brazing copper with MAPP gas. For most jobs, I use copper-phosphorus rods (like BCup-5) because they’re self-fluxing for copper-to-copper joints and affordable. They melt at around 1200°F, which MAPP gas handles easily.
For high-pressure systems, like gas lines, I sometimes use 15% silver alloy rods (like Harris Stay-Silv 15) with flux for stronger, smoother joints. Silver rods are pricier but flow better and are great for critical applications.
Here’s a quick guide to the filler metals I use:
| Filler Type | Best For | Flux Required? |
|---|---|---|
| Copper-Phosphorus | General copper joints | No (but I use it for cleaner results) |
| 15% Silver Alloy | High-pressure or critical joints | Yes |
I choose based on the job’s needs and budget. For most plumbing repairs, copper-phosphorus rods are perfect with MAPP gas.
Techniques for Better Brazing with MAPP Gas
Brazing with MAPP gas takes some finesse, especially since it’s so hot. Here are some tricks I’ve learned to make my joints stronger and cleaner.
Use a Swirl Tip
A swirl tip on the MAPP gas torch creates a stable, focused flame that’s easier to control. I always check the tip for clogs before starting to ensure a clean burn. It makes heating more even.
Heat the Fitting First
Fittings are thicker than pipes, so I heat them first to bring the joint to an even temperature. I move the flame around the fitting, then the pipe, to avoid overheating. This helps the filler flow smoothly.
Keep the Flame Moving
MAPP gas is intense, so I keep the flame moving in circles to spread the heat. Lingering in one spot can burn the copper. A steady hand prevents hot spots and warping.
Work in a Ventilated Space
Brazing produces fumes, especially from flux. I work in a shop with good ventilation or near an open window to stay safe. Tinted safety glasses (shade 3–5) and welding gloves are a must—I got a spark on my arm once, and it stung.
Braze in Small Sections
For long or complex joints, I braze in short sections to control heat. I start at one end and work my way along, ensuring each section is solid before moving on. This prevents overheating with MAPP gas.
Common Mistakes and How to Avoid Them
I’ve made plenty of mistakes brazing copper with MAPP gas. Here are the ones I’ve learned to avoid.
Overheating the Copper
MAPP gas is hot, and too much heat can warp or burn the copper. I watch for dull red and keep the flame moving. If I overheat, I let the metal cool before trying again.
Poor Surface Preparation
Dirty copper leads to weak joints. I once brazed a tarnished pipe, and it leaked. Now, I scrub until shiny and use a degreaser if there’s oil or grease.
Not Drying the Pipe
Water in the pipe creates steam that blocks the filler. I drain thoroughly and dry with a rag or low heat. I learned this after a steamy, failed braze.
Using Too Little Filler
Skimping on filler can leave gaps. I use enough rod to form a complete fillet around the joint. If the filler doesn’t flow fully, I reheat slightly and add more.
Wasting MAPP Gas
MAPP gas canisters aren’t cheap, and they burn fast. I work efficiently, turning off the torch when not in use and keeping the flame small. It saves gas and money.
Applications for Brazing Copper with MAPP Gas
I’ve brazed copper with MAPP gas for all sorts of projects. Here are some common ones:
- Plumbing Repairs: Joining water pipes and fittings for leaks or new lines.
- HVAC Systems: Brazing refrigeration or gas lines for air conditioners.
- Gas Lines: Creating leak-proof joints for natural gas or propane.
- Decorative Projects: Building copper art or fixtures with seamless joints.
- DIY Fixes: Patching pipes or fittings in a pinch without heavy equipment.
Each job needs careful prep and testing, but MAPP gas makes it quick and effective.
Safety Tips for Brazing with MAPP Gas
Brazing with MAPP gas involves high heat and fumes, so safety is a big deal. Here’s what I do to stay safe:
- Wear Protective Gear: Tinted glasses (shade 3–5) protect my eyes, and welding gloves shield my hands from sparks.
- Ventilate the Area: Flux fumes can be harmful. I work in a well-ventilated shop or use a fume extractor.
- Keep a Fire Extinguisher Nearby: Sparks can start fires. I have an extinguisher and a water bucket ready.
- Use a Heat-Resistant Surface: I braze on firebrick or a heat-resistant mat to protect my workbench.
- Store MAPP Gas Safely: I keep canisters upright and away from heat sources to avoid leaks or explosions.
One time, a spark caught a rag on fire, so I’m extra cautious now.
Helpful Suggestions for Brazing Success
Here are some tips I’ve picked up to make brazing copper with MAPP gas easier and more reliable:
- Practice on Scrap: Braze spare pipes or fittings to test your flame and filler flow. It’s a warm-up that saves mistakes.
- Use a Small Flame: A smaller flame conserves MAPP gas and gives better control for small pipes.
- Keep Supplies Fresh: Store flux and rods in sealed containers to avoid contamination.
- Invest in Quality Rods: Cheap rods can lead to weak joints. I use trusted brands like Harris.
- Test Every Joint: Run water or pressure-test with soap solution to catch leaks early.
- Work Slowly: Rushing leads to sloppy joints. Take your time with cleaning and heating.
Braze Copper with MAPP Gas Like a Pro
Brazing copper with MAPP gas is a skill that’s both practical and satisfying. There’s nothing like seeing a shiny, leak-free joint you created, knowing it’ll hold up under pressure. I’ve spent years refining my technique, learning from burnt pipes, wasted gas, and leaky joints.
With clean copper, the right filler, careful heat control, and thorough testing, you can make joints that are strong and reliable. Follow my steps, practice on scrap, and don’t skip the prep. Every joint you braze is a chance to get better at your craft.
Common Questions About Brazing Copper with MAPP Gas
What’s the best brazing rod for copper with MAPP gas?
I use copper-phosphorus rods like BCup-5 for most jobs. They’re self-fluxing and work great with MAPP gas.
Do I need flux to braze copper with MAPP gas?
Not always with copper-phosphorus rods, but I use flux for silver alloy rods or cleaner joints.
Why did my brazed joint leak?
Leaks come from dirty copper, overheating, or too little filler. Clean thoroughly, control heat, and use enough rod.
Can MAPP gas get hot enough to braze copper?
Yes, MAPP gas reaches up to 3600°F, plenty hot for brazing copper with most filler metals.
How do I know if I’m overheating the copper?
If the copper turns bright red or glows, it’s too hot. Use a smaller flame and keep it moving.
How do I clean flux off after brazing?
I use a wire brush or warm water and a rag to remove flux residue to prevent corrosion.
Why isn’t my filler metal flowing properly?
Poor flow comes from insufficient heat, dirty copper, or not enough flux. Reheat slightly, clean thoroughly, or apply more flux.
Is brazing with MAPP gas safe for water pipes?
Yes, if done right. I use lead-free filler rods and test for leaks to ensure the joint is secure.
