A small dent in stainless steel can stand out more than you’d expect, whether it’s on a tool chest, kitchen appliance, automotive panel, or fabricated project. The surface may still be structurally sound, but that single imperfection can ruin the finished look.
If you’re wondering how to take dents out of stainless steel, the right repair method depends on the size, depth, and location of the damage.
Not every dent needs heavy equipment or a complete panel replacement. Some can be removed with simple hand tools, while others require more careful techniques to avoid stretching the metal or scratching the finish.
I’ve learned that rushing the repair often creates more work than the dent itself, especially on brushed or polished stainless steel.
A little patience and the right approach can restore the surface without making the damage worse. I’ll walk you through the most effective dent removal methods, explain which tools work best for different situations, and share practical tips to help you achieve a cleaner, more professional-looking result.

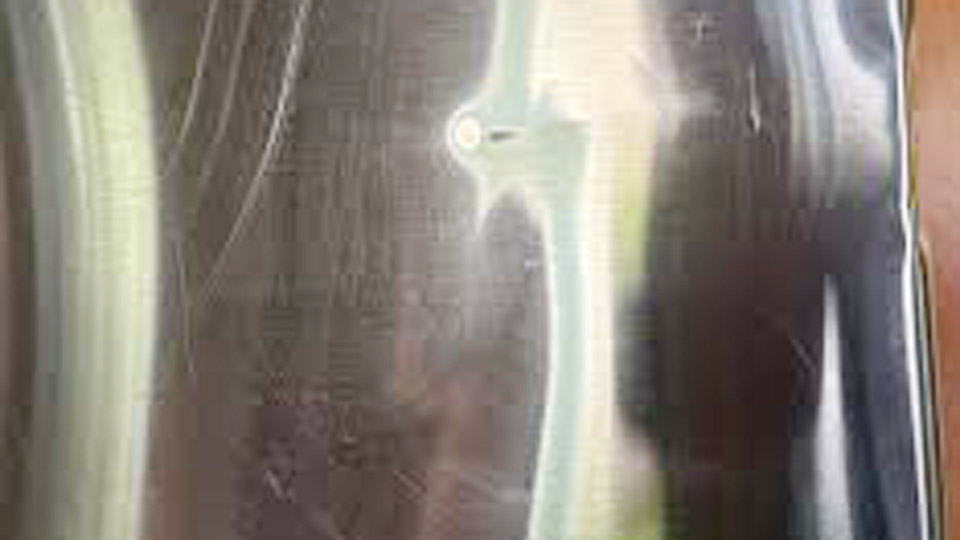

Image by homedesign
Why Proper Dent Removal Matters in Stainless Work
Stainless doesn’t forgive sloppy repairs like mild steel sometimes does. Heat it wrong and you risk sensitization, losing corrosion resistance. Grind too aggressively and you thin the material or create heat tint that invites rust later. Cut corners on finishing and the repair screams amateur.
In a real shop, customers notice. A polished food-service surface with visible grind marks fails inspection. A structural tank with a poorly filled dent might hold for now but fails pressure testing down the line. I’ve seen pros rush a repair only to rework it twice. Taking the time upfront avoids that headache.
Assessing the Dent Before You Touch It
Start by evaluating what you’re dealing with. Measure depth, diameter, and check for creases or stretched metal. Feel the backside if accessible. Look for cracks radiating from the dent—those often need cutting out rather than pulling.
Key questions I ask every time:
- Is the material 304, 316, or something else?
- Gauge or thickness?
- Accessible from both sides?
- Cosmetic only, or does it affect strength?
- Any contamination—oil, dirt, or previous repairs?
Clean the area thoroughly with acetone or a dedicated stainless cleaner. Any grit or oil will contaminate a weld or scratch the surface during pulling.
Non-Welding Methods for Shallow Dents
Many dents on appliances, thin sheets, or panels don’t need a welder. These methods preserve the original material.
Suction and Glue Pull Techniques
Suction cups work surprisingly well on smooth stainless. For better grip on curved or textured surfaces, use a hot-melt glue puller kit with tabs. Apply glue, let it set, and pull gradually. Work from the edges inward on larger dents to avoid creating a high spot in the center.
I’ve used this on restaurant equipment where welding wasn’t practical. Multiple small pulls often outperform one big yank. Follow with gentle tapping using a rubber mallet and wood block from the back if possible.
Heat and Cold Cycles
Stainless expands and contracts with temperature. Heat the area evenly with a heat gun (avoid direct flame on thin material to prevent distortion or discoloration), then apply dry ice or canned air upside down for rapid cooling. The contraction can pop shallow dents out.
Caution: Overheating causes heat tint and potential carbide precipitation in 300-series stainless. Test on scrap first. This works best on flat or gently curved panels.
Mechanical Pushing and Hammering
If you have backside access, use a dolly or homemade wooden forms and a body hammer. Work the edges first, gradually moving toward the center. Stainless work-hardens quickly, so anneal carefully if needed (though annealing stainless requires specific temperatures and follow-up pickling).
For tubes and pipes, custom wooden or metal mandrels help. I’ve made simple tools with steel bars and blocks to push out dents in boat rails without welding.
Welding-Based Dent Repair: When and Why to Use It
For deeper dents, creased material, or where structural integrity matters, welding enters the picture. Two main approaches: pull using welded studs or fill and contour.
Stud Welding and Slide Hammer Pulling
This is a game-changer for accessible dents. Spot weld or stud weld pins or washers to the lowest point of the dent. Use a slide hammer or dedicated dent puller to draw the metal out. Remove the studs by grinding or twisting off, then dress the surface.
Pros: Fast, minimal heat input if done right, preserves thickness.
Cons: Requires a stud welder or capable MIG/TIG setup. Leaves small marks to clean up.
On stainless, use compatible studs and low heat settings to avoid burn-through on thin material. I set my machine lower than for mild steel—typically 40-70 amps depending on thickness for short bursts.
Filling Dents with Weld Metal
When pulling isn’t enough or the dent has stretched metal, build it up with filler and grind flush. TIG (GTAW) is king here for control and clean results on stainless.
Step-by-Step TIG Fill Repair for Dents
Prep the Area
Grind or flap the dent to create a slight V or clean contour. Remove all oxide and contamination. Bevel edges if filling a deeper area. Use a dedicated stainless-only wire brush or flap disc.
Choose Filler
Match the base metal—ER308L or ER316L for common 304/316. For thin material, use 0.030″ or 0.035″ rod. Keep filler clean and dry.
Machine Settings
DCEN with argon (or argon/helium mix for thicker sections). Gas flow 15-20 CFH. For 1/16″ tungsten, sharpen to a point. Amperage: 40-80A for thin gauge, up to 120A for heavier plate. Pulse settings help control heat—background 30-50%, peak adjusted to puddle size.
Welding Technique
Tack around the area first. Add filler in small passes, building gradually. Keep the puddle small and travel steady. Back purge if possible on tanks or pipes to prevent sugaring.
Post-Weld
Let it cool slowly. Grind with 80-120 grit, progressing to 400-600, then polish with Scotch-Brite or dedicated stainless compounds. Use a pickling paste if heat tint appears to restore corrosion resistance.
Common mistake: Too much amperage on the first pass creates undercut or distortion. Another: Poor cleaning leading to porosity that shows after grinding.
SMAW (Stick) Repairs on Thicker Stainless
For field repairs or thicker sections where TIG isn’t available, stick welding works. Use E308L-16 or similar electrodes, 3/32″ or 1/8″ diameter.
Amperage range: 50-90A for 3/32″, 70-120A for 1/8″. Short arc, weave slightly if needed. Stainless rods burn differently—hotter and faster than mild steel. Keep them dry in a rod oven.
Pros: Portable, good penetration.
Cons: More slag, rougher bead, heavier cleanup. Not ideal for thin material or cosmetic work.
MIG Welding for Dent Repairs
Short-circuit or pulse MIG with 0.035″ stainless wire (308LSi or 316LSi) and tri-mix gas (90% He / 7.5% Ar / 2.5% CO2) gives nice results. Lower voltage and wire speed than mild steel. Pulse helps on thin stuff.
I use MIG for larger patches—cut out the damaged section, weld in new material, then grind.
Patching Severe Dents
Sometimes the best fix is to cut out the dented area and weld in a patch. Trace the damage, cut with plasma or shears, fabricate a slightly oversized patch with matching radius. Bevel edges for full penetration. TIG or MIG the seam, then blend.
Joint prep is critical: 60-70° included angle, clean to bright metal. Back purge pipes and tanks.
Finishing Stainless After Repair
This is where many repairs fail visually. Sequence matters:
- Initial grind with 80-120 grit to remove weld.
- 180-240 to smooth.
- 400-600 for satin.
- For mirror, progress to 800+ and polishing compound.
Use dedicated stainless abrasives to avoid cross-contamination from carbon steel. Work in one direction to avoid swirl marks. On food-grade surfaces, ensure no embedded abrasives remain.
Material-Specific Considerations
304 vs 316: 316 tolerates heat better in some cases but both need care with interpass temps.
Thin Gauge (under 0.060″): Minimal heat, prefer mechanical or stud methods.
Thick Plate: More forgiving but watch for distortion—use clamps and sequence welds.
Pipes and Cylinders: Internal access tools or hydraulic methods help.
Common Mistakes and How to Avoid Them
- Overheating thin stainless: Leads to warping and loss of properties. Use pulse and small beads.
- Inadequate cleaning: Porosity and inclusions ruin the finish.
- Aggressive grinding: Thins material and creates low spots.
- Ignoring heat tint: Apply pickling paste or nitric acid solution post-repair.
- Rushing the pull: Creates new highs and lows. Multiple light passes win.
Beginners often try one big pull or weld. Pros work gradually, checking with a straightedge constantly.
Tools Every Welder Should Have for Stainless Dent Work
- Dedicated stainless wire brushes and flap discs.
- Stud welder or dent puller kit.
- Good TIG setup with pulse.
- Assorted dollies, hammers, and mandrels.
- Pickling paste and polishing kit.
- Straightedges, scribes, and calipers for checking flatness.
Safety First in Every Repair
Wear proper PPE—gloves, helmet with correct shade, respirator for grinding stainless (hexavalent chromium concerns). Ensure ventilation, especially with pickling chemicals. Support workpieces securely to prevent movement during welding or hammering.
Real-World Examples from the Shop
I once repaired a dented stainless dairy tank. Access was limited, so we used welded pull pins, followed by light TIG dressing and heavy polishing. Passed inspection and looked factory.
Another job involved a commercial kitchen hood with multiple impacts. We pulled what we could, patched the deep ones, and blended everything. The owner couldn’t tell where the damage was.
Key Takeaways for Better Stainless Dent Repairs
Understanding the material, assessing the damage accurately, and choosing the right method—mechanical, thermal, pulling, or welding—makes all the difference. Match fillers, control heat input with proper amperage and pulse, prep joints meticulously, and finish with patience.
You’re now equipped with shop-tested ways to handle these repairs confidently, whether in a home garage or busy fabrication shop. The next dent you see won’t be a problem—it’ll be an opportunity to show clean work.
One pro tip from years on the floor: Never chase perfect on the first pass. Get it close, walk away, come back with fresh eyes, and do the final blending. Rushing the finish is what separates okay repairs from invisible ones.
FAQ: Stainless Steel Dent Repair Questions
Can you weld a dent in stainless steel without distorting it?
Yes, with low heat input TIG pulse welding and proper clamping. Keep passes small, interpass temperature low (under 150°F if possible), and alternate sides if needed. Stud pulling minimizes weld heat altogether.
What’s the best filler rod for filling dents in 304 stainless?
ER308L or ER308LSi. The low carbon “L” grade reduces sensitization risk. Use 0.035″ for most repair work—easy to control and melts smoothly.
How do I remove weld marks after repairing a dent?
Grind progressively with finer grits, then polish. Use pickling paste to remove heat tint. On food-contact surfaces, verify with a passivation test if required.
Is it worth repairing a deep dent or should I replace the panel?
Depends on size and location. Small to medium dents are repairable. Large or multiple dents on critical structural areas often justify cutting out and patching or replacing for long-term strength and appearance.
What amperage should I use for TIG on thin stainless dent repairs?
Start around 40-60A for 18-20 gauge, adjusting based on puddle control. Pulse at 1-2 Hz helps a lot. Always test settings on scrap of the same thickness.
