Welding different types of steel together can seem tricky, especially if you’re tackling a DIY project at home or trying to repair metal furniture, tools, or fixtures. Many homeowners and hobbyists wonder: Can stainless steel join with mild steel? What about alloy or galvanized steel? Understanding how different steels react under heat and which welding techniques work best is key to creating strong, long-lasting joints without warping or cracking.
Just like using the right cleaning tips and stain removal products ensures your home stays spotless, choosing the correct welding method—whether MIG, TIG, or stick welding—ensures your metal projects are safe, durable, and professional-looking. This guide will simplify the process, answer common questions, and help you confidently weld different steels together with precision and care.

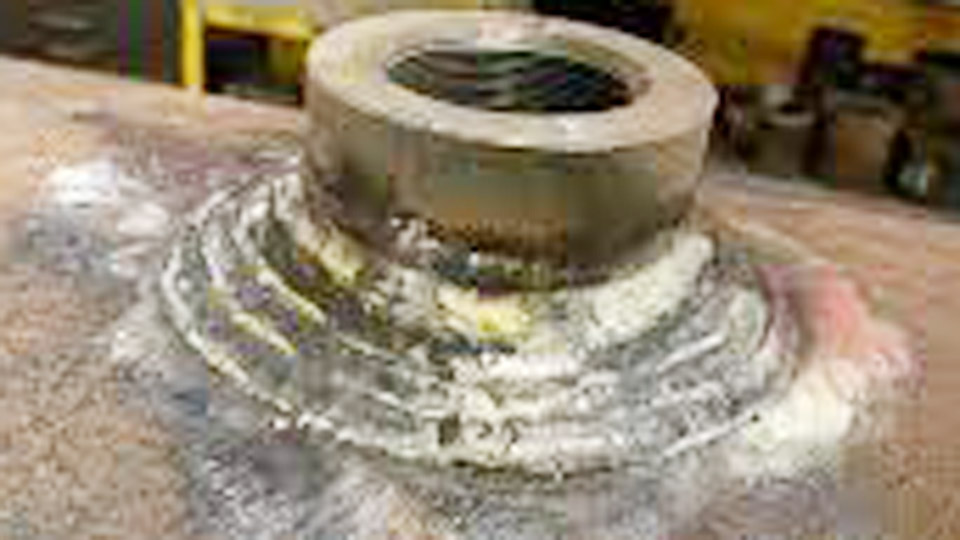

Image by reddit
Why Welding Different Steels Is Tricky
Welding dissimilar steels is like trying to pair two people with different personalities—you need to understand their quirks to make it work. Steels vary in carbon content, alloying elements, and properties like strength or corrosion resistance.
For example, mild steel is forgiving and easy to weld, while stainless steel’s chromium content makes it prone to cracking if mishandled. High-carbon steel? That’s a whole different beast, sensitive to heat and prone to brittleness.
The biggest challenges come from differences in melting points, thermal expansion, and metallurgical compatibility. If one steel expands or contracts more than the other during heating and cooling, you’re begging for cracks. Then there’s the risk of forming brittle intermetallic compounds in the weld zone, which can weaken the joint.
I learned this the hard way years ago when I tried welding stainless to mild steel with the wrong filler rod—ended up with a weld that looked fine but cracked under load. Lesson learned: know your steels and plan your approach.
Types of Steel You Might Weld Together
Before diving into the how-to, let’s talk about the common steels you’re likely to encounter. Each has its own personality in the weld pool:
- Mild Steel: Low carbon (0.05–0.3%), easy to weld, used in structural work, auto repair, or DIY projects like trailers.
- Stainless Steel: High chromium (10–30%), corrosion-resistant, common in food-grade equipment or marine applications.
- High-Carbon Steel: Carbon content above 0.6%, strong but brittle, used in tools or blades.
- Low-Alloy Steel: Contains elements like molybdenum or nickel for added strength, often seen in pipelines or heavy machinery.
- Tool Steel: High-carbon, high-alloy for extreme durability, used in dies or cutting tools.
Each combo—like mild to stainless or high-carbon to low-alloy—requires specific techniques, filler metals, and sometimes a bit of finesse. Let’s explore the processes that make these welds possible.
Welding Processes for Dissimilar Steels
Choosing the right welding process is half the battle. Here’s a rundown of the main methods I’ve used in the shop for welding different steels, along with when and why they work.
Stick Welding (SMAW)
Stick welding is my go-to for quick repairs or outdoor jobs. It’s versatile, forgiving, and works with most steel combinations. You’re using a flux-coated electrode (the “stick”) that doubles as your filler metal. For dissimilar steels, electrodes like E309L or E312 are great because they’re designed to bridge the gap between different metallurgies.
When to Use It: Stick is perfect for small projects, repairs, or when you don’t need a super-clean finish. I’ve used it to weld mild steel brackets to stainless exhaust pipes with solid results.
How It Works: The electrode’s flux shields the weld pool from contamination, and the right rod ensures compatibility. For example, E309L is ideal for mild-to-stainless welds because it handles the chromium mismatch.
Pro Tip: Keep your arc short and steady to avoid excessive heat, which can cause cracking in high-carbon or stainless steels. If you’re new, practice on scrap first—burning through thin stainless is easy if you’re not careful.
MIG Welding (GMAW)
MIG is the workhorse of fabrication shops. It uses a continuous wire feed and shielding gas, making it fast and clean. For dissimilar steels, MIG shines because you can fine-tune your wire and gas to match the materials.
When to Use It: Great for production work, auto body repairs, or larger projects like welding mild steel frames to stainless panels.
How It Works: Use a wire like ER309L for mild-to-stainless or ER70S-6 for mild-to-low-alloy. Argon-rich gas mixes (like 75/25 argon/CO2) work well for most steels, but check your wire’s requirements.
Common Mistake: Don’t crank the voltage too high—it’ll burn through thinner steels or cause spatter. I once rushed a mild-to-stainless job and ended up with a porous weld because my gas flow was off. Check your regulator and keep it around 20–25 CFH.
TIG Welding (GTAW)
TIG is the precision artist of welding. It uses a tungsten electrode and separate filler rod, giving you ultimate control over the weld pool. It’s my favorite for critical joints or aesthetic projects.
When to Use It: Ideal for high-stakes welds, like stainless to tool steel for food-grade equipment or custom motorcycle parts.
How It Works: Use a filler rod like ER309L for stainless-to-mild or ER80S-D2 for low-alloy combos. Pure argon is the go-to shielding gas for clean, strong welds.
Practical Know-How: Cleanliness is everything with TIG. I’ve seen welds fail because of a tiny bit of oil on the surface. Scrub both steels with acetone and a wire brush before starting. Also, keep your tungsten sharp and your heat low to avoid warping.
Comparison Table: Welding Processes for Dissimilar Steels
| Process | Best For | Filler Examples | Pros | Cons |
|---|---|---|---|---|
| Stick (SMAW) | Repairs, outdoor work | E309L, E312 | Versatile, portable | Rougher finish, slower |
| MIG (GMAW) | Production, auto work | ER309L, ER70S-6 | Fast, clean | Gas setup, costlier |
| TIG (GTAW) | Precision, critical welds | ER309L, ER80S-D2 | High-quality, aesthetic | Slow, skill-intensive |
Choosing the Right Filler Metal
The filler metal is your bridge between two steels. Pick the wrong one, and your weld is doomed to crack or corrode. Here’s how I approach it:
Mild to Stainless: Use E309L (stick) or ER309L (MIG/TIG). These are designed for dissimilar metals, balancing the chromium and nickel differences.
Mild to Low-Alloy: ER70S-6 (MIG) or E7018 (stick) works well. They match mild steel’s properties while accommodating low-alloy’s strength.
Stainless to High-Carbon: ER312 or ER309L are your friends. They prevent brittleness in the high-carbon side.
Tool Steel to Anything: This is tough. Use a high-nickel filler like ERNiCr-3 to minimize cracking, and preheat the tool steel to 400–600°F.
Early in my career, I welded a mild steel frame to a stainless pipe with an E7018 rod—big mistake. The weld held for a week before cracking under vibration. Switching to E309L saved the day. Always match your filler to the more “difficult” steel in the pair.
Prepping Your Joints for Success
Joint prep is where good welds start. Dissimilar steels need extra care because of their different properties. Here’s my process:
Clean Both Surfaces: Dirt, oil, or rust will ruin your weld. Use a wire brush, grinder, or acetone. For stainless, avoid steel brushes—use stainless-specific ones to prevent contamination.
Bevel Thick Sections: For plates over 1/4 inch, bevel the edges to a 30–45° angle for better penetration. I use a grinder with a flap disc for this.
Fit-Up Matters: Ensure tight contact between pieces. Gaps lead to burn-through or weak welds. Clamp tightly or tack weld first.
Preheat When Needed: High-carbon or tool steels often need preheating (300–600°F) to reduce cracking. Use a propane torch and a temp stick to check.
Common Mistake: Skipping cleaning. I once welded a greasy mild steel plate to stainless and got porosity that looked like Swiss cheese. A quick wipe with acetone would’ve saved me hours of grinding.
Machine Settings for Dissimilar Steels
Getting your welder dialed in is critical. Here’s a starting point for each process, based on my experience with 1/8-inch steel:
Stick: For E309L, set your machine to 80–120 amps (DC+). Too hot, and you’ll burn through; too low, and you’ll get a weak bead.
MIG: For ER309L wire (0.035-inch), use 18–22 volts and 150–200 inches per minute wire speed. Adjust based on your machine’s chart.
TIG: For ER309L rod, set 60–100 amps (DCEN). Use a 1/16-inch tungsten and keep your arc tight.
Pro Tip: Always run a test weld on scrap pieces of the same steels. Tweak your settings until the bead looks smooth and ties in well on both sides.
Step-by-Step Guide: Welding Mild Steel to Stainless Steel
Let’s walk through a common scenario: welding mild steel to stainless with MIG. This is a frequent job in auto repair or custom fabrication.
- Identify Materials: Confirm one piece is mild steel (magnetic, softer) and the other is stainless (non-magnetic or slightly magnetic for some grades).
- Clean Thoroughly: Scrub both pieces with a stainless wire brush and acetone. Any contamination will cause porosity.
- Choose Filler: Use ER309L wire (0.035-inch) for MIG. It’s designed for this combo.
- Set Up Machine: Dial in 18–20 volts, 150–180 IPM wire speed, and 75/25 argon/CO2 gas at 20 CFH.
- Tack Weld: Make small tack welds to hold the pieces together. Check alignment.
- Weld the Joint: Use a push technique, keeping the gun at a 10–15° angle. Move steadily to avoid overheating the stainless.
- Inspect: Look for smooth bead tie-in and no cracks. Grind and reweld if needed.
- Clean Up: Brush off slag or spatter. For stainless, polish if aesthetics matter.
Don’t rush the weld. Stainless conducts heat poorly, so too much speed can cause warping. Take your time and let the material cool slightly between passes.
Safety Considerations
Welding dissimilar steels can create unique hazards. Here’s what I always keep in mind:
Fumes: Stainless steel releases chromium and nickel fumes, which are toxic. Use a respirator and good ventilation, especially indoors.
Heat Stress: High-carbon or tool steels need preheating, which means hot workpieces. Wear heavy gloves and watch for burns.
UV Exposure: The arc from TIG or MIG is intense. Always wear a helmet with at least a shade 10 lens, plus full leathers.
Crack Risk: Dissimilar welds are prone to cracking under stress. Stress-relieve the weld (heat to 400–600°F and cool slowly) if it’s a critical joint.
I once skipped ventilation while welding stainless indoors—thought I could tough it out. Big mistake. I felt sick for hours. Now, I always set up a fan or work outside when possible.
Pros and Cons of Welding Dissimilar Steels
| Steel Combo | Pros | Cons |
|---|---|---|
| Mild to Stainless | Versatile for repairs, corrosion resistance | Cracking risk, filler mismatch |
| Mild to Low-Alloy | Strong joints, common in structural work | Needs precise filler selection |
| Stainless to High-Carbon | Durable for tools or blades | Brittle welds, requires preheating |
| Tool Steel to Low-Alloy | High-strength applications | Complex prep, expensive fillers |
Conclusion
Welding different steels together is like solving a puzzle—you need the right pieces (filler, process, prep) to make it work. Whether you’re a DIYer building a custom rig, a student learning the ropes, or a pro tackling a complex repair, understanding your materials and techniques is the key to strong, safe welds. You’re now armed with the know-how to choose the right process, dial in your machine, and avoid common pitfalls like cracking or porosity.
FAQ
What filler rod is best for welding mild steel to stainless steel?
ER309L is the go-to for MIG or TIG, and E309L for stick. It handles the chromium and carbon differences, ensuring a strong, crack-resistant weld.
Can I weld high-carbon steel without preheating?
You can, but it’s risky. High-carbon steel is prone to cracking without preheating (300–600°F). Use a propane torch and temp stick to get it right.
Why do my dissimilar welds keep cracking?
Cracking often comes from improper filler, excessive heat, or poor joint prep. Match your filler to the tougher steel, keep heat low, and clean thoroughly.
Is TIG better than MIG for dissimilar steels?
TIG offers more control and cleaner welds, ideal for critical or aesthetic jobs. MIG is faster and better for production or thicker materials. Choose based on your project’s needs.
How do I avoid porosity in stainless steel welds?
Porosity comes from contamination or poor gas coverage. Clean the surface with acetone, use a stainless brush, and ensure your shielding gas (like argon) flows at 20–25 CFH.
