Grinding or cutting into old metal parts can get confusing fast when you’re not sure whether you’re dealing with cast iron or steel. One sparks differently, one cracks easier under stress, and both react to heat in completely different ways during welding or repair work.
That’s why understanding What Is the Difference Between Cast Iron and Steel matters before you strike an arc or start fabricating.
In real shop conditions, mixing them up can lead to broken repairs, warped parts, or welds that fail sooner than expected.
Cast iron is known for its hardness and brittleness, while steel offers more flexibility and strength under impact. I’ve seen beginners treat them the same, only to end up fighting cracks and weak joints halfway through the job.
Knowing how to identify and work with each metal can save time, reduce costly mistakes, and improve the quality of your repairs. I’ll break down the key differences in simple, practical terms so you can confidently tell cast iron and steel apart—and handle them the right way in the shop.

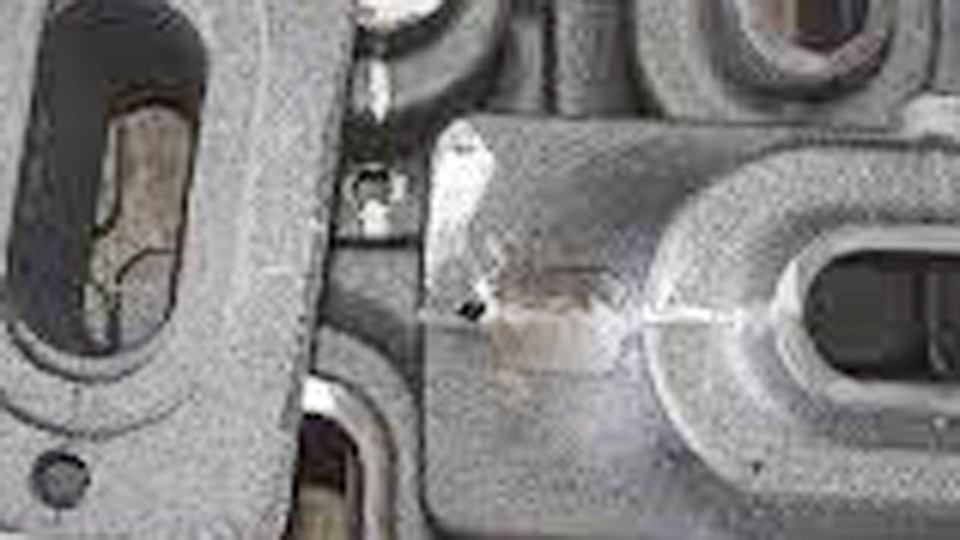

Image by reliance-foundry
Composition: Why Carbon Content Changes Everything
Cast iron typically contains 2% to 4% carbon, often with 1-3% silicon and traces of sulfur and phosphorus. Steel, by contrast, stays under 2% carbon—most mild steel we weld daily runs 0.05% to about 0.25%.
That extra carbon in cast iron forms graphite flakes or other structures that make the material pour nicely into molds but turn it brittle. Steel’s lower carbon keeps it ductile, so it bends before it breaks.
In the shop, this means cast iron expands and contracts differently under heat. It doesn’t like sudden temperature swings. Steel forgives more, especially low-carbon varieties common in fabrication.
Practical takeaway: Before you weld anything unknown, do a quick test. Grind a spot with a wheel. Cast iron throws short, reddish-orange sparks that don’t travel far. Steel gives bright yellow sparks that shoot out longer. A hammer tap test helps too—cast iron gives a dull thud, while steel rings.
Physical and Mechanical Properties Welders Notice Daily
Cast iron excels in compression but hates tension or impact. That’s why you see it in engine blocks, heavy machine bases, and old stove parts. Steel handles tension, bending, and dynamic loads far better, making it the go-to for frames, beams, and repair plates.
Cast iron is harder but more brittle. Steel offers better toughness and ductility. Heat conductivity differs too—cast iron holds heat well but transfers it unevenly, leading to hot spots during welding.
In practice, this affects distortion and cracking risk. Steel warps predictably. Cast iron can crack without warning if you don’t control the heat.
Identifying Cast Iron vs Steel in the Field
Real jobs rarely come with material certs. Here’s how I teach apprentices:
- Spark test on a grinder (safest first step).
- File test: A sharp file skates over hardened cast iron welds but bites mild steel.
- Appearance: Castings often show mold lines or porous surfaces. Steel looks more uniform.
- Sound and weight: Cast iron feels heavier for its size and sounds dead when struck.
Misidentifying a cast steel part as cast iron wastes expensive nickel rods. Treating real cast iron like steel guarantees cracks.
Welding Processes: What Works Best for Each
Steel welds beautifully with almost any process—SMAW (stick), MIG, TIG, or flux-cored. For mild steel in a USA shop, 7018 rods or ER70S-6 wire handle most jobs.
Cast iron demands more care. Stick welding (SMAW) remains king for repairs because you control heat better. MIG and TIG work but need precise settings and often preheat. Avoid high-heat processes that shock the material.
Welding Cast Iron: Techniques That Actually Work
I’ve repaired hundreds of cast iron pieces. The secret isn’t magic rods—it’s managing heat and stress.
Preparation is everything:
- Grind or chip away all paint, rust, oil, and contaminants. Cast iron absorbs oils deeply—burn them out with a torch if needed.
- Bevel cracks into a V or U groove for good penetration.
- Drill stop holes at crack ends to prevent propagation.
Preheating:
Preheat slowly and evenly to 500–1200°F depending on thickness and type (gray iron needs less aggression than white). Use a rosebud torch or oven. Never spot heat.
Electrodes and Settings:
- For machinable welds: Nickel 99 (Tech-Rod 99 or equivalent) for single-pass or low-dilution. Run 1/8″ rod around 70-90 amps DC+.
- Nickel 55 for higher strength multi-pass. Slightly higher amperage, around 85-110 amps.
- For non-machinable or rusty parts: Ferroweld or steel rods in a pinch, but expect harder welds.
Keep welds short—1 inch max—then peen immediately while hot to relieve stress. Let each pass cool before the next. Post-weld, slow cool under insulation or buried in lime/sand.
Common beginner mistake: Running too hot or too long a bead. The puddle looks nice until it cools and the part explodes with cracks.
Welding Steel: Straightforward but Still Demands Respect
Mild steel is forgiving. For 1/4″ plate, 1/8″ 7018 at 90-130 amps works great. Clean to bright metal, maintain good arc length, and watch travel speed.
Higher carbon steels (like 1045) need preheat around 300-500°F and low-hydrogen rods to avoid hydrogen cracking.
Cast steel (higher carbon than mild but under 2%) bridges the gap. Treat it more like steel but watch for distortion in large castings. Preheat lightly and use low-hydrogen processes.
Cast Iron to Steel: The Hybrid Repair Challenge
Welding cast iron to steel happens often—mounting brackets, repairs on machinery. The cast iron side dictates the procedure.
Use nickel-based rods. Butter the cast iron first with nickel, then weld to steel with compatible filler. Preheat the cast iron side heavily. Control cooling to prevent the cast iron from pulling away and cracking.
I once repaired a broken cast exhaust manifold to a steel flange. Nickel 55, careful peening, and slow cooling in vermiculite saved the job.
Pros and Cons Comparison
Cast Iron:
- Pros: Excellent castability, vibration damping, wears well in compression, cheaper for complex shapes.
- Cons: Brittle, hard to weld, poor tensile strength, sensitive to thermal shock.
Steel:
- Pros: Strong in tension, ductile, highly weldable, versatile.
- Cons: Can corrode without protection, heavier processes needed for very thick sections, less damping.
| Property | Cast Iron | Steel (Mild) |
|---|---|---|
| Carbon Content | 2-4% | <2% (usually <0.3%) |
| Weldability | Difficult, needs preheat | Excellent |
| Brittleness | High | Low |
| Typical Preheat | 500-1200°F | Optional or low |
| Common Rods | Nickel 99/55 | 7018, ER70S-6 |
| Machinability after | Nickel for best results | Standard |
Step-by-Step: Repairing a Cracked Cast Iron Part
- Identify and clean thoroughly.
- Stop-drill crack ends.
- Preheat evenly.
- Weld in short passes with nickel rod, peening each.
- Slow cool completely.
- Test for cracks with dye penetrant.
For steel cracks: Similar prep, but standard rods and faster workflow.
Machine Settings for Common US Welders
On a typical 200-250 amp stick machine:
- Cast iron, 3/32″ nickel rod: 50-80 amps.
- 1/8″ nickel: 70-110 amps.
- Mild steel 7018 1/8″: 90-140 amps.
Dial it down for cast iron. Watch puddle fluidity—too cold and it won’t fuse; too hot and you dilute carbon badly.
Joint prep for both: 60-90° bevels, root gap for thicker material. For cast iron, wider grooves help reduce stress concentration.
Safety Considerations Every Shop Should Follow
Cast iron welding produces more fumes—good ventilation or respirator essential. Preheating means hot parts everywhere—use proper PPE and fire watch.
Hydrogen from moisture causes issues in both, but especially steel. Store rods properly.
Never weld on pressurized or unknown castings without expert assessment—explosion risk is real.
Common Mistakes I See Repeatedly
- Treating cast iron like steel: Instant cracks.
- Skipping preheat or rushing cooling.
- Using steel rods on cast iron for “strength”—creates hard, brittle zones.
- Overheating thin sections.
- Poor cleaning—oil and contaminants cause porosity.
Pros sometimes get lazy on big repairs and pay for it in rework.
Real-World Applications and When to Choose Each
Use cast iron for repair of vintage machinery, engine components, or where damping matters. Steel for structural work, custom fab, or anything load-bearing in tension.
Many modern parts are cast steel for better properties—worth identifying correctly to save time and money.
Your newfound knowledge equips you to approach these materials with confidence instead of crossing your fingers. You understand why one cracks and the other bends, which rods actually work, and how heat control separates good welds from scrap.
Here’s my pro-level tip after decades on the torch: When in doubt on a critical cast iron repair, butter the joint with nickel, weld conservatively, and always plan for slow cooling. Rushing has cost more shop hours than any other single habit.
FAQ
Can you weld cast iron without preheating?
Sometimes on very thin, non-critical parts with nickel rods and short beads, but I don’t recommend it. Most repairs fail without controlled heat. Preheat when possible.
What’s the best rod for welding cast iron to mild steel?
Nickel 55 or 99 series. Nickel accommodates the carbon pickup and differing expansion rates. Avoid plain steel rods except for temporary fixes.
How do I prevent cracks when welding cast iron?
Short beads, immediate peening, slow and even preheat/cool, thorough cleaning, and stop holes on cracks. Don’t let the part get cherry red.
Is cast steel easier to weld than cast iron?
Yes. Treat it like higher-carbon steel—light preheat, low-hydrogen rods, standard techniques. Much more forgiving than true cast iron.
Should I use MIG or stick for cast iron repairs?
Stick gives better control for most repairs. MIG works with the right wire and settings but demands more skill to keep heat low.
