If you’re diving into gas pressure welding, you’re probably curious about how this technique works and what makes it unique among other welding processes. Gas pressure welding is a method that combines intense heat from gas combustion with applied pressure to create a solid bond between two metal surfaces.

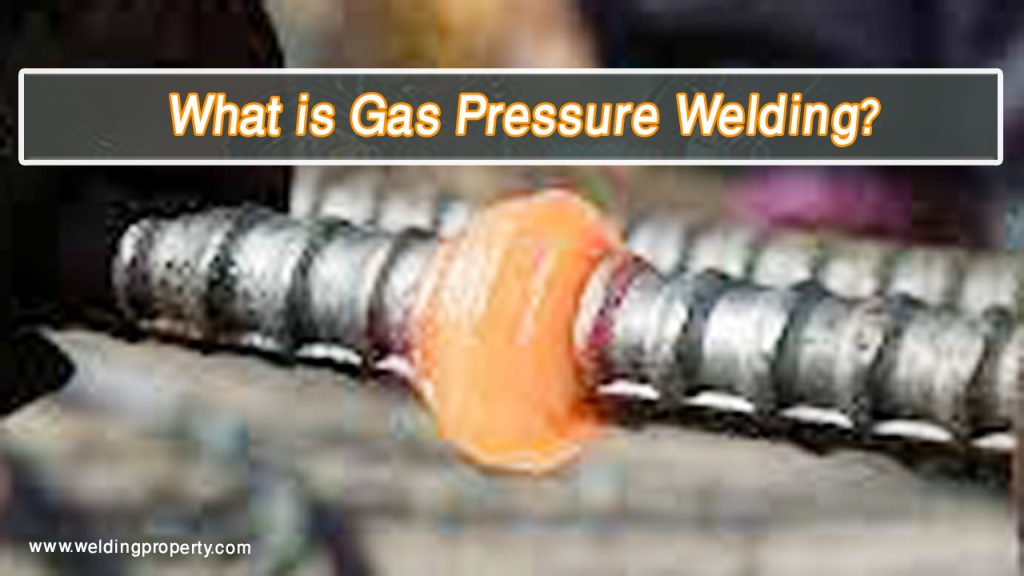

Image by arcweldingpro
Unlike traditional fusion welding, gas pressure welding doesn’t rely on melting the metals but rather on softening them enough for the surfaces to fuse when force is applied.
I have spent time exploring this method and found it fascinating, especially how it manages to achieve a strong bond with minimal distortion and no filler material. Let’s break down exactly how gas pressure welding works, its process, and why it’s preferred for certain applications.
Basics of Gas Pressure Welding
Gas pressure welding is a type of solid-state welding, meaning the metal surfaces bond without fully melting. Instead, the materials are heated to a plastic state, which is when they become malleable but remain solid. In this state, pressure is applied to join the materials. Here’s how the process unfolds.
Heating the Metal Surfaces with Gas Flames
In gas pressure welding, a gas flame—often from an oxy-acetylene torch—is used to heat the metal surfaces. Oxy-acetylene flames are particularly effective because they reach high temperatures quickly, allowing the operator to control the heat precisely. The goal here is to bring the metal surfaces up to a plastic state.
This requires careful monitoring to avoid overheating, which could damage the material, or underheating, which could result in an incomplete weld.
Applying Pressure to Join the Metals
Once the metal surfaces are hot and malleable, pressure is applied. The amount of pressure used in gas pressure welding is carefully calibrated to create a solid bond without deforming the material excessively. This pressure forces the softened surfaces to come together, which essentially causes the metal structures to “blend” at a microscopic level.
Unlike welding techniques that rely on filler material, gas pressure welding doesn’t need any additional substances, making it a cleaner process in terms of materials.
Step-by-Step Process of Gas Pressure Welding
Gas pressure welding follows a structured process that includes preparation, heating, and applying pressure. Here’s how each step plays out in practice:
Preparing the Materials
Preparation is key in gas pressure welding. The surfaces being welded need to be clean and free from contaminants like oil, rust, and dirt. These impurities can weaken the bond and lead to poor weld quality.
Sometimes, materials are ground or brushed before welding to ensure they’re as clean as possible. Proper alignment of the pieces is also crucial, as misaligned surfaces can result in weak or uneven welds.
Heating the Metal to a Plastic State
With the pieces prepared, the next step is heating. The operator uses a gas flame, commonly oxy-acetylene, to heat the metal surfaces to a plastic state. This temperature varies depending on the material, but it typically falls just below the melting point. The operator monitors the temperature carefully to avoid overheating, which could weaken the joint.
Applying Pressure to Create the Bond
Once the metal reaches the right temperature, pressure is applied. The amount of pressure used is carefully controlled, as too much force can cause deformation, while too little may not form a strong enough bond. The pressure causes the metal surfaces to blend at a microscopic level, creating a solid and durable joint.
Cooling and Inspecting the Weld
After the bond is formed, the weld is allowed to cool naturally. Inspection usually follows, checking for any signs of weakness, such as cracks or gaps in the joint.
If the weld passes inspection, it’s ready for use. Gas pressure welding, when done correctly, produces a seamless and reliable bond that’s particularly strong in applications where integrity is critical.
Advantages of Gas Pressure Welding in Practical Applications
Gas pressure welding has unique advantages that make it suitable for specific industries, particularly where strong, seamless joints are essential. Here’s why this method stands out in the welding world.
Strong, Seamless Bonds
One of the biggest advantages of gas pressure welding is the seamless, strong bond it creates. Because it doesn’t require filler materials, the joint is purely the original metal pieces bonded together, which adds strength and durability. This is crucial in industries like railways, where a weak joint could compromise the entire structure.
Minimal Material Distortion
Since gas pressure welding heats the metal only to a plastic state rather than a molten one, it generally results in less material distortion compared to other welding techniques. This is especially useful when working with metals that need to retain their shape and properties.
Cost-Effectiveness for Certain Jobs
Gas pressure welding can be a cost-effective solution for specific applications, such as railway maintenance or pipeline construction. The process requires fewer materials and minimal equipment, making it an affordable option for projects where it’s suitable.
Limitations of Gas Pressure Welding: When It’s Not Ideal
While gas pressure welding has its benefits, it’s not the perfect choice for every project. There are some limitations to consider when deciding if this method is right for your application.
Limited to Ferrous Metals
Gas pressure welding works best with ferrous metals like iron and steel. It doesn’t perform well on non-ferrous metals, such as aluminum and copper, due to the different melting points and material properties. This can limit its application in industries that frequently use non-ferrous materials.
Skilled Operator Requirement
This method requires a skilled operator who understands both the heating process and the amount of pressure needed to create a solid bond. Gas pressure welding isn’t as forgiving as other methods, so an inexperienced welder may struggle to achieve a reliable weld.
Slow Process Compared to Other Methods
Gas pressure welding is typically slower than other types of welding, such as MIG or TIG welding. Heating the material to a plastic state and then applying pressure takes time, which can be a drawback in high-production environments.
Comparison of Gas Pressure Welding vs Other Welding Methods
To give you a better idea of where gas pressure welding stands among other welding methods, here’s a quick comparison:
| Aspect | Gas Pressure Welding | MIG Welding | TIG Welding |
|---|---|---|---|
| Heat Source | Gas flame | Electric arc | Electric arc |
| Material State | Plastic (softened) | Molten | Molten |
| Materials Used | No filler | Filler wire | Filler rod (optional) |
| Speed | Moderate | Fast | Slow |
| Skill Level Required | High | Moderate | High |
| Distortion | Low | Moderate | Low |
Why Choose Gas Pressure Welding?
Gas pressure welding is the go-to choice when you need a strong, clean bond in specific situations, especially when working with ferrous metals. The absence of filler material makes it both cost-effective and clean, with a streamlined setup compared to other methods.
In applications like railway tracks, structural components, and heavy-duty piping, gas pressure welding is trusted for its reliability and durability.
If you’re working with a high production volume, non-ferrous metals, or need speed, gas pressure welding may not be the best fit. In those cases, methods like MIG or TIG welding can offer more flexibility and efficiency.
Conclusion
Gas pressure welding is a unique process that combines heat and pressure to create a robust bond between metal surfaces. It’s highly valued for its ability to produce seamless, distortion-free joints in ferrous metals without the need for filler material.
While it requires a skilled operator and isn’t suited for every material, its strengths in durability and cost-effectiveness make it a great choice for certain applications, especially in infrastructure and construction.
If you’re repairing railway tracks or building structural components, understanding how gas pressure welding works and its pros and cons can help you decide if it’s the right method for your next project.
