A MIG welder can run smooth for hours—until suddenly the wire jams and refuses to move. The motor keeps turning, the trigger feels normal, but nothing comes out of the gun except frustration.
That’s when you’re stuck dealing with a common shop headache: how to remove stuck wire from MIG welder without damaging the liner or wasting half a spool.
In real welding setups, this issue usually shows up from bird-nesting, dirty liners, incorrect tension, or just a worn-out contact tip. I’ve seen welders pull too hard and end up worsening the jam, bending the wire deeper into the liner and making the cleanup job even more painful.
That’s why knowing the right removal process matters. Done correctly, you can clear the blockage quickly, protect your liner, and get back to clean, steady feeding without replacing unnecessary parts.
I’ll walk through practical steps to safely remove stuck wire and prevent it from happening again in the first place.

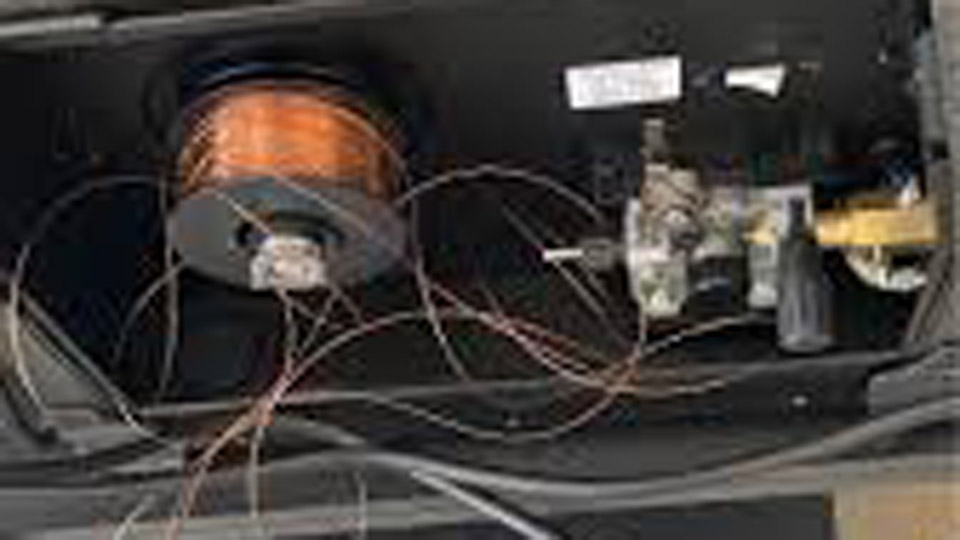

Image by PRIMEWELD EQUIPMENT USERS
Why MIG Wire Gets Stuck: Real Causes from the Shop Floor
Wire feeding problems rarely come out of nowhere. After years of running everything from 0.030″ solid wire on thin sheet to 0.045″ flux-cored on heavy plate, I’ve seen the same culprits repeatedly.
Kinked or bird-nested wire at the drive rollers is the most common starting point. Too much tension on the drive rolls flattens or kinks the wire, which then catches in the liner. Rusty or dirty wire adds friction and debris that builds up inside the liner.
Worn contact tips create arcing inside the tip itself, melting the wire in place. Wrong liner size or a liner that’s seen better days (frayed, crushed, or full of copper shavings) turns smooth feeding into a nightmare.
Improper machine settings make everything worse. Wire speed too low combined with high voltage leads to burnback. Drive roll tension set like you’re trying to crush the wire creates grooves and deformities.
Even something as simple as a bent gun cable or leaving the torch coiled up overnight can create enough resistance to jam things.
Pro tip from experience: Always check your wire spool for “cast” and “helix” issues before loading. Cheap imported wire often has inconsistent winding that causes feeding headaches right from the start.
Tools and Safety Gear You’ll Need
Before you start digging into the gun, gather these:
- Good pair of side cutters or diagonal pliers
- Needle-nose pliers
- Allen wrenches or the specific tools for your gun (most use 1/4″ or 5/16″)
- Replacement contact tips and liner (always keep spares)
- Wire brush or tip cleaner
- Gloves and safety glasses
- Penetrating oil or WD-40 for stubborn cases
Unplug the welder or turn off the power and gas. MIG guns carry voltage even when not welding if something’s shorted.
Step-by-Step: Removing Wire Stuck in the Contact Tip
This is the easiest and most common fix. Start here every time.
- Release drive roll tension completely. You don’t want the feeder fighting you.
- Remove the nozzle and unscrew the contact tip.
- Inspect the tip. If the wire is burned back and welded inside, you have options.
- Try snapping or gently twisting the wire at the tip end with pliers while pulling. Often the wire breaks cleanly at the jam point.
- If it’s really stuck, use a small drill bit (slightly smaller than the wire diameter) by hand to carefully clear the bore. Don’t power drill unless you’re experienced—it’s easy to ruin the tip.
- Once clear, install a fresh tip. Never reuse a burned or oversized tip.
If the wire won’t budge from the front, move to pulling from the machine end.
How to Pull Stuck Wire from the Liner
When the jam is deeper in the cable, you need to work smarter.
Method 1: Straight Pull (Most Common Success)
- Straighten the entire gun cable as much as possible on your workbench.
- Cut off any bird’s nest or excess at the drive rollers.
- Grip the wire firmly with pliers near the feeder and pull steadily while twisting slightly. Many times it comes right out.
- If it breaks, feed a new piece of wire from the machine end to push the broken section out the gun end.
Method 2: Liner Removal
This is often the fastest long-term solution.
- Disconnect the gun from the machine.
- Loosen the liner retaining nut or set screw at the feeder end.
- Pull the liner out of the cable (it helps to twist while pulling).
- Once the liner is out, the stuck wire usually slides free or can be pushed/pulled easily.
- Inspect the liner for kinks, debris, or wear. If it’s questionable, replace it—liners are cheap insurance.
Method 3: Drill Trick for Stubborn Cases
Some guys swear by chucking the wire end into a cordless drill and spinning it while pulling gently. This can help unwind kinks. Use caution and low speed.
When to Replace the Liner (And How to Do It Right)
If you’ve pulled wire multiple times or notice increased drag, just replace the liner. Don’t fight it.
Choose the correct liner for your wire diameter and type:
- Steel wire → Steel spiral liner
- Aluminum → Teflon or plastic liner
- Flux-cored → Often larger ID or specific flux liners
Cut the new liner to exact length—too long causes bunching at the diffuser, too short leaves gaps that snag wire. Most guns have a specific measurement from the retaining nut to the diffuser.
Installation is straightforward but precision matters. Feed it straight, seat it fully, and trim any excess neatly.
Preventing Future Wire Jams: Shop-Proven Habits
The best fix is never having the problem.
- Clean your wire with a dedicated wire cleaner pad before loading.
- Match drive rolls, tension, and tip size perfectly to your wire diameter.
- Use proper burn-back control settings if your machine has them.
- Keep the gun cable relatively straight during use.
- Store the torch hanging straight when not in use.
- Check contact tips after every spool or every few hours on heavy use.
- Avoid excessive drive roll pressure— the wire should slip if it hits real resistance.
For flux-cored (gasless) welding, these issues happen more often because the torch runs hotter without shielding gas cooling. Use slightly larger tips and be extra vigilant about burnback.
MIG Wire, Tips, and Settings for Common Jobs
Mild Steel Fabrication:
- 0.030″ wire: Great all-rounder for 16ga to 1/4″
- Typical settings on a 200A machine: 18-22V, 250-350 IPM wire speed
- Contact tip: 0.030″ or 0.035″ depending on exact wire
Heavy Repair Work:
- 0.045″ flux-cored for thicker material and outdoor work
- Higher wire speeds and voltage to maintain puddle control
Aluminum:
- Requires dedicated gun or spool gun, Teflon liner, and push feeder setup in many cases.
Always match filler metal to base material. ER70S-6 for mild steel with some rust or mill scale tolerance. ER70S-3 for cleaner metal and better appearance.
Common Beginner and Pro Mistakes
Beginners:
- Overtightening drive rolls “just to make it feed”
- Using the same tip for different wire sizes
- Leaving wire exposed to shop humidity (rust city)
- Coiling the gun cable tightly
Experienced Welders (who should know better):
- Running the same liner for years because “it still kinda works”
- Ignoring small increases in feeding resistance
- Switching wire types without changing tips/liners
- Using cheap no-name consumables to save a few bucks
I’ve made all these mistakes myself at one time or another. The difference is recognizing the early warning signs—like slight chatter in the gun or inconsistent arc starts.
Comparison: Quick Fixes vs Full Teardown
| Situation | Quick Fix | When to Do Full Teardown | Time Estimate |
|---|---|---|---|
| Wire stuck only in tip | Replace tip, clear bore | If tip damaged or recurring | 5-10 min |
| Jam at drive rolls | Release tension, pull wire | Bird’s nest or kinked spool | 10-15 min |
| Deep liner jam | Push with new wire or remove liner | Liner worn or multiple breaks | 20-40 min |
| Recurring issues | Check all settings | Replace liner + tip + clean gun | 30-60 min |
Advanced Troubleshooting for Persistent Problems
If you’ve cleared the wire but feeding is still erratic:
- Check drive roll condition—grooves wear and cause slipping or crushing.
- Inspect inlet guide tube alignment.
- Verify polarity (DC+ for most solid wire).
- Test with a short gun cable if possible to isolate the issue.
- Consider upgrading to a quality MIG gun with better liner retention.
On Miller and Lincoln machines, the Euro-style connections and quick-release systems make gun changes much easier than older thread-on models.
Reflection on Keeping Your MIG Running Strong
Dealing with stuck wire teaches you more about your machine than smooth sailing ever will. Once you understand how the wire path works from spool to puddle, you start catching problems before they become major headaches.
Final Thoughts
You’ve now got the practical knowledge to handle jammed wire confidently, whether you’re in your garage on a Saturday project or on a job site with a crew waiting. The key isn’t fancy tools—it’s methodical troubleshooting and good preventive habits.
Keep a spare gun cable or at least a complete liner and set of tips in your toolbox. When a jam turns ugly at 4 PM on Friday, that spare will save your day and your reputation.
FAQ
Why does my MIG wire keep burning back into the contact tip?
Usually wire speed is too low or voltage too high for your stickout. Increase wire feed speed slightly or shorten your stickout to 3/8″-1/2″. A worn tip makes this much worse—replace it.
Can I reuse a liner after removing stuck wire?
Only if it pulls out smoothly with no visible damage or debris. Most times, especially with flux-cored wire, it’s better to replace it. The cost is low compared to frustration.
What’s the best way to prevent wire jams with flux-cored wire?
Use the correct larger tip size, keep tension moderate, and run slightly higher wire speeds. Flux-cored runs hotter, so burnback is more common. Clean the wire well and avoid excessive cable coiling.
How often should I change the contact tip?
On daily use, every spool or two. On lighter hobby use, when you notice increased spatter, arc wandering, or feeding resistance. Don’t wait for complete failure.
My new wire won’t feed at all—did I install the liner wrong?
Check that the liner seats fully against the diffuser and isn’t too long or short. Also verify drive roll groove size matches your wire diameter exactly. Misalignment at the inlet guide is a common hidden culprit.
