A lot of welders hit the same point sooner or later—you’ve got a decent MIG machine in the garage, but now you want cleaner welds on thinner metal or better control for detailed work.
Buying a separate TIG setup sounds great until you see the price tag, which is why the question how to turn a MIG welder into a TIG welder comes up so often among DIY welders and small-shop fabricators.
The idea sounds simple at first: swap the gun, hook up gas, and start TIG welding. But once you get into the setup, you realize there’s more to it.
Polarity, torch compatibility, amperage control, and machine limitations all play a role in whether the conversion actually works—or just creates frustration and weak welds.
Understanding the process before you start can save money, prevent equipment mistakes, and help you get much better results from the machine you already own.
I’ll walk through what’s possible, what isn’t, and the practical steps that make converting a MIG welder for TIG work much easier and safer.

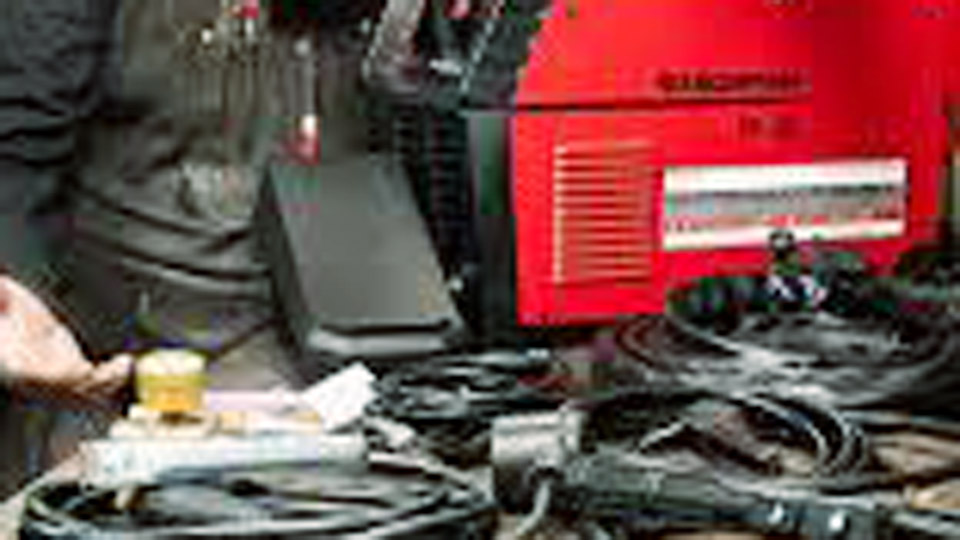

Image by @madebychrislee
Why Welders Consider MIG-to-TIG Conversion
Most home and small shop MIG welders are constant voltage (CV) machines designed for wire. TIG prefers constant current (CC) for stable arc control. Yet many 110V or 220V MIG units like certain Lincoln, Miller, or Hobart models can be adapted for scratch-start DC TIG.
Real benefits I’ve seen:
- Cleaner welds on thin materials (under 1/8″)
- Less distortion on sheet metal
- No spatter cleanup
- Ability to weld stainless without flux-cored mess
- Cost savings versus buying a TIG machine
Limitations upfront: This is DC only (no AC for aluminum oxide cleaning). No high-frequency start means scratch or lift start, which takes practice. Arc control isn’t as precise, and duty cycle drops because you’re pushing the machine outside its sweet spot.
Understanding the Core Differences Between MIG and TIG Processes
MIG (GMAW) uses a consumable wire electrode fed continuously with shielding gas, usually 75/25 argon/CO2 mix. Polarity is typically DCEP (electrode positive).
TIG (GTAW) uses a non-consumable tungsten electrode, separate filler rod, and 100% argon. Polarity is almost always DCEN (electrode negative) for steel and stainless to focus heat on the workpiece.
To bridge them, you repurpose the MIG torch to hold tungsten, switch gas and polarity, and control the arc manually. The wire feeder stays off or is disconnected.
Essential Tools and Materials for the Conversion
Gather these before starting:
- Fresh contact tips (drillable)
- Tungsten electrodes (2% thoriated or lanthanated, 3/32″ or 1/8″)
- 100% argon cylinder and regulator
- Drill bits (one matching your tungsten diameter, another for set screw)
- Set screw or Allen screw for holding tungsten
- TIG collet and collet body (optional for better setup)
- Safety gear: helmet with proper shade (9-12), gloves, jacket, ventilation
For US shops, common machines like the Lincoln 140 or similar flux-core/MIG units work if they allow polarity reversal.
Step-by-Step: Modifying Your MIG Torch for TIG Use
Step 1: Safety and Machine Prep
Unplug the welder. Ventilate your workspace—argon displaces oxygen. Wear eye protection during mods.
Step 2: Switch Shielding Gas
Drain any CO2 or mixed gas. Hook up pure argon at 15-20 CFH. This prevents oxidation and stabilizes the arc for TIG.
Step 3: Reverse Polarity to DCEN
On most MIG machines, swap the leads inside the machine or at the terminals. Torch becomes negative, work clamp positive. This is critical—wrong polarity fries the tungsten instantly. Double-check your manual.
Step 4: Modify the Contact Tip (The Heart of the Hack)
- Remove wire from the spool and feeder.
- Take a contact tip and drill it straight through to fit your tungsten snugly (e.g., 3/32″ tungsten needs exact bit).
- Drill and tap a side hole for a small set screw to secure the tungsten.
- Some guys use a sliced tip or add a collet body for better grip and gas flow.
Insert the assembly into the MIG gun. Trim the nozzle if needed for visibility. Your MIG torch is now a crude TIG torch.
Step 5: Machine Settings
Set voltage low (around 10-15V depending on machine) and wire speed to minimum or off. You’re manually controlling the arc length. Start with amperage based on material thickness—more on that later.
How the Converted Setup Actually Works in Practice
With the tungsten protruding 1/4″ to 1/2″ past the nozzle, you scratch or lift to start the arc. Hold a tight arc (1/16″ or less) and add filler rod with your other hand, just like real TIG. Gas flows through the original MIG lines.
It feels awkward at first because the torch is bulkier than a dedicated TIG torch. But after a few practice beads on scrap, it clicks. I’ve repaired thin stainless tubing this way when my TIG rig was down.
Material Compatibility and When This Hack Shines
Best for:
- Mild steel up to 1/8″ thick
- Stainless steel sheet and tubing
- Repair work where appearance matters
Challenges with aluminum: Possible with pure argon and careful technique, but oxide layer makes it tough without AC. Stick to DC-friendly metals.
Not ideal for: Thick plate (poor penetration control), high-production, or critical structural welds. Use proper TIG or MIG there.
Recommended Amperage Ranges and Electrode Choices
Tungsten selection:
- 3/32″ for up to 150 amps
- 1/8″ for higher
Amperage guidelines (DCEN, argon):
- 0.040″ material: 20-40A
- 1/16″ (0.062″): 40-60A
- 3/32″: 60-90A
- 1/8″: 80-120A
Start low and increase. Too much heat and you burn through or contaminate the tungsten. Balance with travel speed.
Joint Preparation: The Non-Negotiable Step
Cleanliness is king in TIG. Grind or wire brush mill scale, oil, paint, and rust. Use acetone or dedicated weld cleaner. Bevel joints for thicker material. Fit-up must be tight—TIG doesn’t fill gaps like MIG.
For butt joints on thin sheet, back-purge if possible on stainless to prevent sugaring.
Common Beginner and Pro Mistakes (And How to Avoid Them)
Mistake 1: Wrong polarity. Tungsten melts instantly. Always confirm DCEN.
Mistake 2: Poor gas coverage. Too low flow causes porosity. Too high causes turbulence. 15-20 CFH is the sweet spot.
Mistake 3: Long arc length. Leads to unstable arc and contamination. Keep it tight.
Mistake 4: Forgetting to deactivate wire feeder. Accidental wire feed ruins everything.
Mistake 5: Overheating the torch. MIG torches aren’t water-cooled. Take breaks.
Pros sometimes forget this is a compromise. Don’t push amperage too high or you’ll damage the machine’s diodes.
Pros and Cons of the MIG-to-TIG Conversion
Pros:
- Inexpensive way to add TIG capability
- Uses existing machine and torch
- Great for learning fundamentals
- Portable for field repairs
Cons:
- Scratch start only (harder on thin material)
- Bulkier torch reduces control
- Limited duty cycle and power
- No AC output
- Potential machine wear if overused
| Aspect | Standard MIG | Converted TIG Hack | Dedicated TIG |
|---|---|---|---|
| Weld Appearance | Good with cleanup | Excellent | Superior |
| Thin Material | Burn-through risk | Excellent control | Best |
| Speed | Fast | Slower | Moderate |
| Cost | Low | Minimal extra | Higher |
| Learning Curve | Easier | Moderate | Steep |
| Versatility | Thick metals | Clean precision | All metals (AC/DC) |
Advanced Tips from the Shop Floor
Practice on flat scrap first. Develop a rhythm: scratch, establish puddle, add filler, move. Use forehand technique (push the puddle) for better shielding.
For better results, some welders add a foot pedal if their machine supports it, or upgrade to a real TIG torch with adapter. On multi-process machines popular in the US, switching is even easier.
Watch your tungsten—grind a sharp point at 30-45 degrees. If it balls up, polarity or gas is wrong.
Safety Considerations Every Welder Must Know
Argon is heavier than air—ventilate properly. UV rays are intense in TIG; cover skin completely. Keep flammables away. Inspect cables for damage before each use. Never weld in confined spaces without proper setup.
Real-World Applications That Make This Worth It
I’ve used this on:
- Custom motorcycle exhaust patches
- Thin auto body panels
- Stainless kitchen fab repairs
- Hobby projects like brackets and sculptures
It shines in mobile repair vans where hauling a full TIG setup isn’t practical.
Reflection on practical takeaways
Turning a MIG into a basic TIG setup equips you with versatile skills using what you have. You’ve learned polarity shifts, gas selection, tungsten handling, proper amperage, and joint prep. These fundamentals transfer directly to professional TIG machines.
The biggest pro tip I’d give any welder: Master clean metal prep and tight arc control first. Everything else follows. A beautiful TIG bead starts with a clean joint and confident technique, whether on a hacked MIG or a $5,000 inverter. Get out in the shop, practice consistently, and you’ll produce welds that look like they came from dedicated equipment.
This hack isn’t about replacing proper tools—it’s about expanding what you can do today. Many of the best welders I know started with scrap and improvisation before investing in top gear.
FAQ: Common Questions on MIG to TIG Conversions
How long does the conversion take, and is it reversible?
Usually 15-30 minutes. It’s fully reversible—swap back the contact tip, wire, and polarity for MIG. Keep modified tips separate.
Will this damage my MIG welder?
Minimal risk if you stay within amperage limits and duty cycle. Avoid prolonged high-amp use. Monitor heat in the torch and machine.
Can I TIG weld aluminum with this setup?
It’s challenging. DC TIG on aluminum works for some repairs but lacks cleaning action. Use pure argon, pure tungsten or zirconiated, and lots of practice. For serious aluminum, get AC capability.
What machines work best for this conversion?
Any DC MIG with polarity reversal and decent output. Popular US options include certain Lincoln, Hobart, or entry-level inverters. Check your manual.
Is a real TIG torch worth buying instead of hacking the MIG gun?
Yes for frequent use. A cheap TIG torch with adapter connects easier and offers better control. The hack is best for occasional or emergency use.
