I’ve spent years in shops welding everything from thin exhaust tubing to thick pressure vessel repairs, and stainless steel always demands respect.
Get the setup wrong, and you’ll chase discoloration, cracking, or weak joints that fail inspection. Nail it, and you produce clean, corrosion-resistant welds that look professional and hold up in real service.
Learning how to set up a TIG welder for stainless steel separates hobbyists who burn through filler and time from those who deliver consistent results.
Whether you’re building custom parts at home, working in a fabrication shop, or training as a student, the right machine settings, prep, and technique make all the difference in penetration, distortion control, and avoiding costly rework.

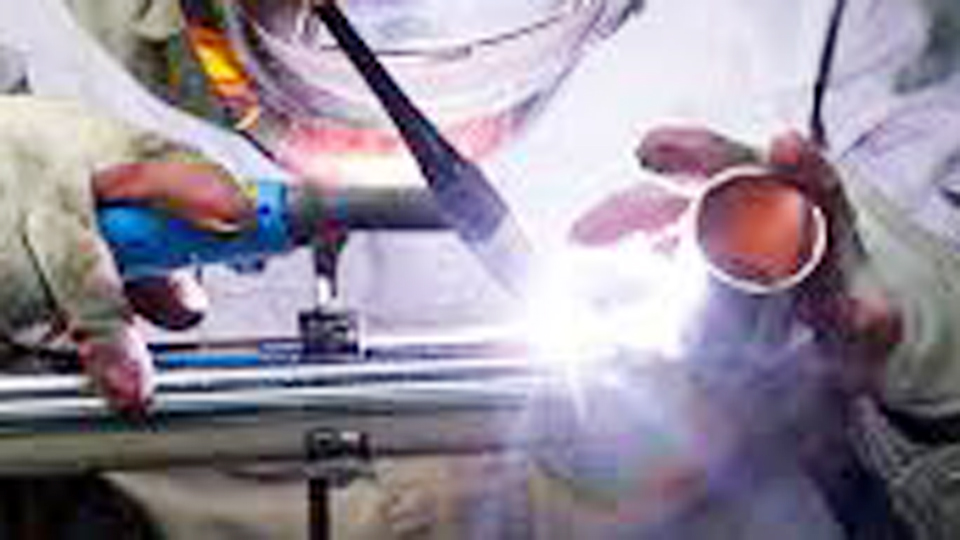

Image by red-d-arc
Why TIG Setup for Stainless Steel Matters in Real Jobs
Stainless holds heat longer than mild steel and reacts badly to contamination. Poor gas coverage causes sugaring on the back side. Wrong amperage leads to warping or lack of fusion. I’ve seen pros ruin expensive 316L sheets because they skipped thorough cleaning or rushed the post-flow.
A solid setup gives you control over the puddle, minimizes heat input, and preserves the material’s corrosion resistance. In food-grade, medical, or marine work, aesthetics and integrity aren’t optional—they’re required.
Essential Equipment and Machine Choices for Stainless TIG Welding
Start with a DC TIG welder or an AC/DC machine set to DCEN (electrode negative). Most US shops use inverters like Miller Dynasty, Lincoln, or Everlast models—they offer precise amperage control and pulsing capabilities that help on stainless.
For most hobby and light professional work, a 200-amp machine handles up to 1/4-inch material comfortably. Heavier fabrication might need 300+ amps.
Torch setup basics:
- Use a #17 or #26 air- or water-cooled torch depending on duty cycle needs.
- Gas lens diffuser for better coverage, especially on stainless.
- Ceramic cup size #8 to #12—larger cups give better shielding on flat work.
Tungsten electrode:
- 2% thoriated (red) or rare-earth mixes like 2% lanthanated (blue) work well.
- Diameter: 1/16″ for thin material up to 3/32″ for heavier stuff.
- Grind to a sharp point with longitudinal scratches—never use a wheel contaminated with steel.
Shielding Gas Selection and Flow Rates
Pure argon is the go-to for stainless steel TIG. It provides excellent arc stability and cleaning action. For thicker sections or when you need more heat and faster travel, add 10-25% helium, but pure argon keeps things simple for most setups.
Flow rate guidelines:
- Start at 15-20 CFH for a #10 cup.
- Adjust based on cup size—roughly 2-3 CFH per cup size number.
- Use a gas lens and you can sometimes run slightly lower while maintaining coverage.
Pre-flow: 1-2 seconds. Post-flow: At least 10-15 seconds, longer on thicker material or when the weld is still glowing red. Cutting post-flow short is one of the fastest ways to ruin a stainless weld through oxidation.
Tungsten Preparation and Torch Setup
Grind your tungsten properly every time. A contaminated or balled tip kills arc control. I keep dedicated grinders and stainless brushes in the shop—cross-contamination from carbon steel is a silent killer on stainless.
Stickout should match your cup diameter or slightly less for tight spots. Hold the torch at about 10-15 degrees from vertical for good puddle control and gas coverage.
Material Preparation: The Step Most People Skip
This is where many beginners and even experienced welders lose quality. Stainless must be surgically clean.
Cleaning process I use:
- Wipe down with acetone or dedicated stainless cleaner to remove oils and grease.
- Use a dedicated stainless steel wire brush—never one used on mild steel.
- Grind or file joint edges if there’s mill scale or heavy oxidation.
- For pipe or tubing, back-purge with argon to prevent sugaring inside.
I can’t overstate this: dirty stainless leads to porosity, inclusions, and welds that look like they sat in the rain for a week.
Choosing the Right Filler Rod for Stainless Steel
Match your filler to the base metal as closely as possible.
- 304/304L stainless → ER308L filler
- 316/316L → ER316L
Use 1/16″ or 3/32″ diameter rods depending on material thickness. Keep rods in a clean, dry area—moisture causes hydrogen issues. I like to cut filler into 18-24 inch lengths for better control during welding.
Amperage Settings and Heat Control for Different Thicknesses
This is the heart of successful stainless TIG. Stainless requires about 10% less amperage than mild steel for the same thickness because it retains heat.
General starting guidelines (DCEN, argon):
- 0.040″ – 1/16″ (1-1.6mm): 30-60 amps
- 1/8″ (3.2mm): 80-120 amps
- 3/16″ (4.8mm): 150-200 amps
- 1/4″ (6.4mm): 200-275 amps
Use your foot pedal to ramp up and down. Start low, establish the puddle quickly, then add filler and travel. Pulse settings (if your machine has them) help a lot on thin material—try 1-4 Hz with 30-70% background current to control heat input.
I usually set the machine 10-20 amps higher than my target and use the pedal to feather the heat. This gives headroom without burning through.
Step-by-Step TIG Welder Setup Process
- Safety first — Helmet with proper shade (9-13), gloves, jacket, and good ventilation. Stainless fumes aren’t forgiving.
- Connect everything — Torch, ground clamp (clean connection), gas hose.
- Set polarity — DCEN.
- Gas — Pure argon, correct flow.
- Tungsten — Sharpened, installed with proper stickout.
- Machine settings — Amperage based on thickness, pre/post flow, pulse if using.
- Test — Run a practice bead on scrap of the same material.
Take your time on setup. Rushing here costs more time later fixing bad welds.
Joint Preparation and Fit-Up Techniques
Good fit-up is critical on stainless. Gaps cause you to add too much filler and heat, increasing distortion.
For butt joints, aim for tight fit with no more than 1/32″ gap. Bevel thicker material (over 1/8″) to 30-35 degrees for proper penetration. Tack welds should be small and spaced properly—grind them slightly before filling to avoid defects.
Welding Techniques That Work in the Shop
Keep your arc short—about 1/16″ to 3/32″. Push the puddle slightly (forehand technique) for better gas coverage. Add filler rod by dipping it into the leading edge of the puddle at a 15-20 degree angle—don’t melt it in the arc.
Travel speed matters. Move fast enough to stay ahead of the heat but slow enough for good fusion. On thin stainless, I often fuse first without filler to establish rhythm, then add rod on subsequent passes.
For multi-pass welds, clean between passes. Interpass temperature should stay low—under 350°F for most 300-series stainless to avoid carbide precipitation.
Common Mistakes and How to Avoid Them
Mistake 1: Insufficient cleaning — Leads to dirty beads and porosity. Solution: Dedicated tools and solvents.
Mistake 2: Wrong gas flow or post-flow — Causes oxidation and sugaring. Solution: Use larger cups/gas lenses and wait until the weld cools under gas.
Mistake 3: Too much heat — Warping and loss of corrosion resistance. Solution: Pulse, fast travel, and practice on scrap.
Mistake 4: Long arc length — Unstable puddle and poor shielding. Solution: Keep it tight.
Mistake 5: Contaminated filler or tungsten — Inclusions or arc wander. Solution: Clean storage and grinding practices.
I’ve made all these mistakes over the years. The key is recognizing them quickly and adjusting.
Comparison of TIG Settings for Common Stainless Thicknesses
| Material Thickness | Tungsten Size | Filler Rod Size | Amperage Range | Gas Flow (CFH) | Recommended Cup Size |
|---|---|---|---|---|---|
| 0.040″ – 1/16″ | 1/16″ | 1/16″ | 30-60 | 12-18 | #8 – #10 |
| 1/8″ | 3/32″ | 1/16″ – 3/32″ | 80-120 | 15-20 | #10 – #12 |
| 3/16″ | 3/32″ | 3/32″ | 150-200 | 18-25 | #12 |
| 1/4″ | 1/8″ | 1/8″ | 200-275 | 20-30 | #12+ |
These are starting points—always test on scrap matching your exact alloy and joint type.
Safety Considerations Every Welder Should Know
Stainless welding produces hexavalent chromium fumes—dangerous stuff. Use proper ventilation or fume extraction. Wear leather and keep your skin covered. Check your ground clamp placement to avoid arc strikes on the workpiece.
For confined spaces or pipe welding, back-purging isn’t optional if corrosion resistance matters.
Advanced Tips for Better Stainless TIG Welds
- Use pulse for thin material and out-of-position work.
- For sanitary or high-purity applications, back-purge thoroughly.
- Learn to read the puddle color—straw to light gold is good; blue/purple means too much heat.
- Keep a consistent travel angle and speed.
Real-World Applications and Examples
In exhaust fabrication, I set up for 1/16″ 304 tubing with 50-70 amps, tight fit-up, and good back-purge. For repair work on 1/8″ 316 tank linings, I use 90-110 amps with pulse to minimize distortion. Each job teaches something new about heat management.
Wrapping up the Setup Essentials
After hundreds of hours behind the torch, the difference between mediocre and excellent stainless TIG welds comes down to preparation, conservative heat input, and patience with post-flow.
You’ve got the machine dialed, material clean, settings tested on scrap, and technique practiced. Now you’re ready to tackle real projects with confidence.
The best pro tip I can leave you with: Slow is smooth, smooth is fast. Rushing the setup or the weld itself almost always costs more time in the end. Take the extra minutes to do it right the first time.
FAQ: TIG Welding Stainless Steel
What amperage should I use for 1/8 inch stainless steel?
Around 80-120 amps DCEN is a solid starting range. Use your foot pedal to adjust based on travel speed and joint type. Thinner sections or tight fit-ups need the lower end.
Why is my stainless weld turning black or purple?
Too much heat or insufficient gas coverage. Increase travel speed, use pulse, ensure proper post-flow, and check for drafts disrupting your shielding gas.
Do I need to back-purge when TIG welding stainless pipe?
Yes, especially for corrosion-critical applications. Sugaring inside the pipe creates crevices where bacteria or corrosion can start. Argon purge at 5-10 CFH is standard.
What filler rod works best for 304 stainless?
ER308L. The low carbon “L” grade helps prevent carbide precipitation and maintains corrosion resistance.
How do I prevent warping when welding thin stainless sheets?
Minimize heat input with pulsing, tack frequently with good spacing, use copper backing bars for heat sinking, and weld in short segments with cooling time between passes.
