Running a clean bead on brass can get tricky fast—too much heat and the zinc starts to burn off, leaving porosity and a rough, inconsistent finish. I’ve had jobs where the puddle looked fine at first, then suddenly turned unpredictable because the heat wasn’t under control.
That’s where TIG Welding Brass with Silicon Bronze starts to make a lot more sense, especially when you need better control and a cleaner result.
In real workshop conditions, using silicon bronze as a filler helps lower the overall heat input while still giving you a strong, smooth joint.
It flows nicely, reduces the risk of cracking, and works well for thin sections or detailed fabrication. But it also requires proper technique—torch angle, amperage control, and timing all matter if you want a solid bond without defects.
This is one of those methods that can save a job if you understand it properly. I’ll walk through how TIG welding brass with silicon bronze actually works, where it performs best, and the practical tips that help you avoid common mistakes and get consistent results.

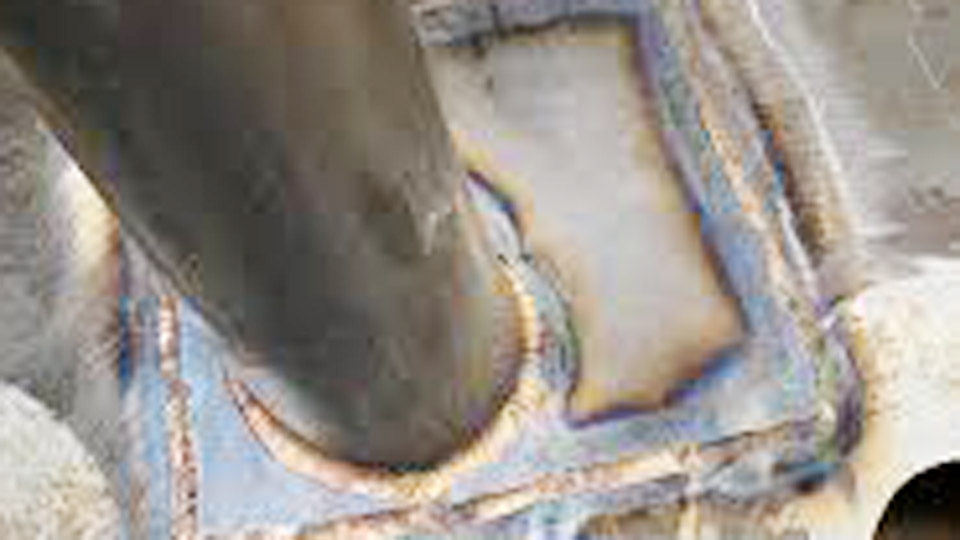

Image by reddit
Why TIG Brazing Brass with Silicon Bronze Beats Traditional Methods
Direct TIG welding of brass often leads to problems. The zinc in yellow brass (common 60/40 or 70/30 alloys) has a lower boiling point than the copper matrix, so the puddle “sizzles” and spits out zinc oxide fumes. This causes porosity, discoloration, and health hazards if ventilation isn’t perfect.
Silicon bronze (typically ERCuSi-A) melts around 1880–1990°F, lower than brass’s melting range. You heat the brass enough for the filler to flow and bond without fully melting the base metal. This reduces distortion on thin sections or complex shapes like marine fittings, lamp parts, or automotive trim.
Real benefits I’ve seen:
- Less heat input means minimal warping on sheet or tube.
- Excellent corrosion resistance for outdoor or plumbing applications.
- Joins brass to steel, stainless, copper, or bronze easily.
- Lower risk of cracking compared to high-heat fusion welds.
- Good machinability and appearance after polishing or patina.
Of course, it’s not always the strongest option for high-load structural work—fusion welding or mechanical fastening might be better there—but for most hobbyist, repair, and light fab jobs, it excels.
Understanding Silicon Bronze Filler for Brass
Silicon bronze rods (AWS A5.7 ERCuSi-A) contain about 3% silicon, plus small amounts of manganese and zinc. This gives excellent fluidity, deoxidizing properties, and strength around 50-60 ksi tensile—plenty for most non-critical joints.
Common diameters:
- 1/16″ for thin material and precise work.
- 3/32″ for general fab and thicker sections.
- 1/8″ when you need to build up or grind flush.
Keep rods clean and dry. Wipe them with acetone or alcohol before use—contamination shows up fast as porosity.
Machine Setup and Polarity for TIG Brazing Brass
On US machines like Miller Dynasty or Lincoln, I run DCEN (Direct Current Electrode Negative) for most silicon bronze work. It puts more heat into the workpiece, similar to steel TIG.
Typical settings for brass (adjust for your machine and material thickness):
- Thin sheet (1/16″ or less): 40-70 amps. Use a foot pedal to feather heat.
- 1/8″ material: 70-110 amps.
- Thicker sections (3/16″+): 100-150 amps, with preheating if needed.
Start lower than you would for steel and increase as the filler cools the puddle. Pulse settings help: 1-2 PPS with 30-50% background current gives nice control and reduces heat input.
Gas: 100% Argon at 15-20 CFH. Use a gas lens for better coverage on intricate brass pieces. Post-flow 8-10 seconds to protect the cooling bead.
Tungsten: 2% lanthanated or thoriated, 3/32″ sharpened to a point. AC can help with cleaning on oxidized brass, but DCEN is my go-to for control.
Joint Preparation: The Foundation of Success
Cleanliness is non-negotiable with brass and silicon bronze. Oxides, oils, and zinc residues ruin puddles.
Step-by-step prep:
- Degrease with acetone or brake cleaner.
- Mechanically clean with a dedicated stainless wire brush or flap disc until shiny. Avoid carbon steel tools that embed contamination.
- For thicker material (>1/8″), bevel edges to 60-70° included angle for good filler penetration.
- Fit-up should be tight—gaps larger than 1/16″ are hard to bridge without excessive heat.
- Clamp securely or use backing bars (copper or aluminum) to control heat and prevent burn-through.
Preheat heavy brass sections to 300-500°F if possible. This helps the filler flow without localized overheating.
Step-by-Step: How to TIG Braze Brass with Silicon Bronze
Here’s my workshop process for a typical butt or lap joint on 1/8″ brass:
Tack it up — Use low amps and quick dabs of filler for small tacks. Space them to allow expansion.
Start the puddle — Direct the arc mostly on the brass. Watch for it to “sweat” or show slight movement. Don’t wait for a full molten pool like steel.
Add filler — Dip the rod into the leading edge of the puddle. The silicon bronze flows beautifully. Keep the rod in the gas shield.
Travel — Move steadily. The bead should look smooth and wet. If it balls up, you’re too cold. If it boils or smokes heavily, back off the heat.
Build passes — For thick joints, let sections cool between passes to avoid overheating the filler.
End the weld — Gradually reduce amperage to fill the crater. Abrupt stops cause cracks.
Pro technique: Heat the brass until it starts fuming slightly, then add a ball of silicon bronze and let it sink in. This works great for repairs.
Amperage, Technique, and Heat Control Tips
Brass conducts heat quickly, so balance is key. Too much heat and zinc boils; too little and the filler won’t bond.
- Use the foot pedal aggressively—pulse with your foot.
- Keep the tungsten 1/8-3/16″ off the work.
- Torch angle: 10-15° push angle helps direct the filler.
- For color match, silicon bronze is reddish; aluminum bronze (ERCuAl) matches brass better but flows differently.
On thin brass tube or sheet, back-step welding or wet rags on the backside prevents distortion.
Common Mistakes and How to Avoid Them
Beginners often treat this like steel TIG and crank the amps. Result? Porosity and zinc fumes everywhere.
Top mistakes I’ve seen (and made):
- Overheating the base metal → Pitting and porosity. Solution: Lower amps, faster travel.
- Dirty material → Inclusions and weak bonds. Clean like your paycheck depends on it.
- Poor gas coverage → Oxidation and black crusty beads. Use gas lens and proper post-flow.
- Adding filler too cold → Balling up and lack of fusion.
- Ignoring ventilation → Breathing zinc fumes is miserable. Use a fume extractor.
Pros sometimes rush multi-pass joints without cooling, leading to hot cracking in the filler.
Safety Considerations for Brass and Silicon Bronze
Brass fumes are toxic—zinc oxide causes metal fume fever (“welder’s flu”). Always weld in a well-ventilated area or with local exhaust. Wear proper PPE: respirator if needed, gloves, and eye protection.
Silicon bronze produces less smoke than direct brass welding, but respect the process. Keep a fire extinguisher handy—brass shavings or rags can ignite.
When to Choose Silicon Bronze vs. Other Options
Use silicon bronze for:
- Brass to dissimilar metals.
- Decorative or low-stress repairs.
- Thin sections where distortion control matters.
For high-strength same-metal brass joints, consider aluminum bronze filler or oxy-acetylene. For critical pressure vessels, consult codes and possibly use mechanical methods.
Pros and Cons Table:
| Aspect | Silicon Bronze TIG Brazing | Direct Fusion TIG Welding Brass |
|---|---|---|
| Heat Input | Low | High |
| Distortion | Minimal | Significant on thin parts |
| Porosity Risk | Low if done right | High due to zinc |
| Strength | Good for most fab/repair | Potentially higher but inconsistent |
| Ease for Beginners | Forgiving with practice | Demanding |
| Color Match | Reddish | Excellent if using brass filler |
| Versatility | Joins many metals | Limited to similar brass |
Material Compatibility and Real Shop Examples
Silicon bronze shines joining brass to steel (like custom hardware), brass to copper (plumbing repairs), or repairing cast bronze. I’ve used it on marine cleats, lamp bases, and even artistic sculptures where appearance matters.
For yellow brass (high zinc), be extra cautious with heat. Naval brass or red brass (lower zinc) handles it better.
Post-Weld Cleanup and Finishing
Let the piece cool slowly under argon. Wire brush or grind the bead. Silicon bronze polishes nicely and takes patina well. For food-contact or marine, ensure no flux residues (none needed with TIG argon).
Advanced Tips from the Shop Floor
- Pulse for control on vertical or overhead positions.
- For large repairs, use multiple short passes with interpass cooling.
- Experiment with AC balance on heavily oxidized brass for extra cleaning.
- Keep multiple filler sizes handy—don’t fight with oversized rod on thin joints.
Building Confidence with TIG Brazing Brass
After reading this and practicing on scrap, you’ll handle brass projects with far less frustration. Focus on cleanliness, heat control, and steady filler addition. Those first clean beads feel rewarding—like the metal is working with you instead of against you.
Treat every joint like it’s going in a customer’s hands. Take your time on prep, dial in the machine on test pieces, and watch the puddle like a hawk. Master this, and brass stops being intimidating and becomes another versatile material in your toolbox.
FAQs
Can you TIG weld brass to steel with silicon bronze?
Yes. This is one of the best uses. Clean both metals thoroughly, use DCEN, and apply the silicon bronze as a braze. It creates a strong, flexible joint ideal for mixed-metal fab. Heat the brass side more carefully.
What amperage should I use for 1/8″ brass with silicon bronze?
Start around 70-100 amps DCEN and adjust with the pedal. Thinner material drops to 50-70 amps. Always test on scrap—the exact number varies with joint type, fit-up, and machine.
Why am I getting porosity when TIG brazing brass?
Usually overheating or contamination. Let pieces cool between passes, ensure perfect cleanliness, and maintain gas coverage. Overheated silicon bronze itself can porosity—keep the puddle controlled.
Is silicon bronze stronger than the brass base metal?
The filler has good strength (around 50 ksi), but the joint strength depends on design. For most repairs and fab, it’s more than adequate. Avoid high-stress applications without proper engineering.
Should I use AC or DC for silicon bronze on brass?
DCEN is simpler and gives great results for most work. AC can provide extra cleaning on dirty or oxidized brass but requires more skill to control heat. Start with DC.
