If you’ve ever pulled the trigger on your MIG gun and watched the weld go from smooth to spattery chaos in seconds, welcome to the club. I’ve blown holes through thin metal, stacked up cold welds, and wasted plenty of wire before I figured out how much those settings really matter.
Getting your machine dialed in isn’t rocket science — it just takes a little patience and a feel for what the puddle’s telling you.
Learning how to adjust MIG welder settings can make all the difference between a messy joint and a clean, strong weld you’re proud of. Once you know how voltage, wire speed, and gas flow play together, your welds start to look (and sound) right.
Let’s walk through how to fine-tune your setup so your MIG runs smooth every time — no guessing, no frustration, just solid, steady beads.

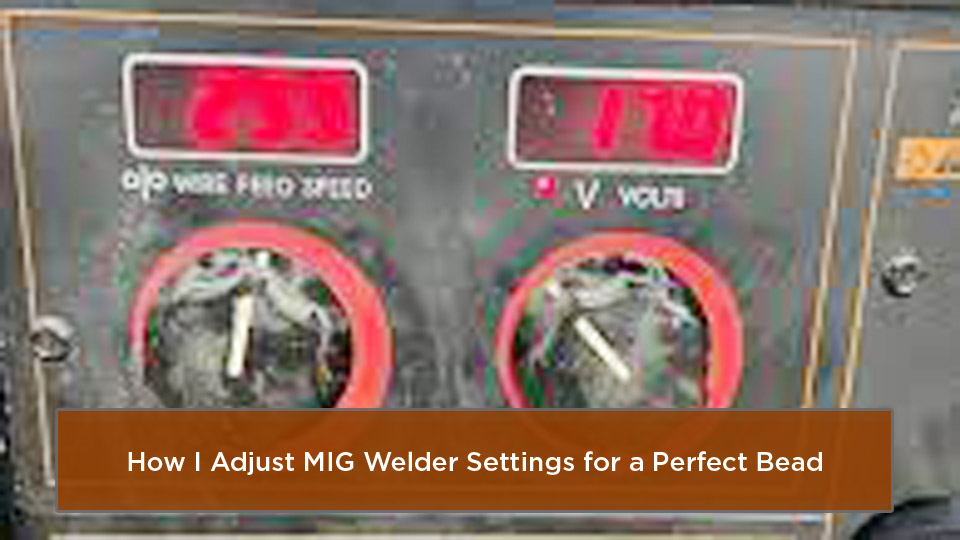

Image by Owners of Everlast welders
Why MIG Welder Settings Actually Matter in the Shop
Voltage, wire speed, gas flow—they’re not just numbers on a chart. Dial them wrong and you risk weak joints that fail inspection, wasted filler metal that eats your budget, or worse, spatter that sparks a fire in dry sawdust. I once watched a rookie burn a hole clean through 1/4-inch steel because he cranked the heat chasing penetration.
Five minutes later the foreman was on him about rework costs. Nail the settings, though, and you’ll lay consistent beads on mild steel, stainless, or aluminum, pass AWS D1.1 visual every time, and keep your shielding gas bill under control.
Understanding Voltage: The Heat Knob You Can’t Ignore
Think of voltage as the welder’s temperature control. Too low and the arc stutters like a cold engine; too high and you’re melting the base metal into soup.
How Voltage Affects Arc Length and Bead Profile
Higher voltage stretches the arc, flattening the bead and increasing width. Lower voltage shortens it, building a taller, narrower crown. On 1/8-inch mild steel with 0.030 wire, I usually sit around 18–20 volts for a fillet in the flat position. Push to 22 volts and the bead washes out—great for sheet metal, terrible if you need reinforcement.
Quick Voltage Starting Points by Material Thickness
| Thickness | ER70S-6 Wire Dia. | Approx. Voltage |
|---|---|---|
| 16 ga | 0.030″ | 16–17 V |
| 1/8″ | 0.030″ | 18–20 V |
| 1/4″ | 0.035″ | 21–23 V |
| 3/8″ | 0.035″ | 24–26 V |
Tweak in half-volt increments while watching the arc sound—smooth bacon sizzle, not angry popcorn.
Wire Feed Speed: Feeding the Beast Without Overstuffing It
Wire speed controls amperage in most MIG machines (constant-voltage power sources). Spin the knob too slow and you get a weak, ropy bead; too fast and the wire stubs into the puddle, spitting globs everywhere.
Matching Wire Speed to Voltage Like Peanut Butter and Jelly
The sweet spot is where the wire melts off just faster than it feeds, creating that steady “sssss” sound. On my Lincoln Power MIG 210 MP, 150 ipm at 19 volts lays a perfect bead on 1/8-inch with 0.030 wire. I keep a Sharpie note taped inside the door for each thickness so the next shift doesn’t guess.
Common Wire Speed Mistakes I Still See
- Cold wire stub: Wire pokes the puddle and balls up. Fix: bump wire speed 20–30 ipm.
- Burnback into contact tip: Wire fuses to the tip. Fix: drop speed or trim stick-out to 3/8 inch max.
- Running 0.035 wire on a 0.030 liner: Friction starves the feed. Swap the liner, save your sanity.
Shielding Gas Flow Rate: Invisible but Critical
You wouldn’t weld outside in a 20 mph breeze without a windscreen, so why skimp on CFH indoors? I run 100% CO2 at 30–35 CFH for carbon steel—cheap and deep penetration. Switch to 75/25 argon-CO2 mix for smoother arc and less spatter at 20–25 CFH.
When to Bump the Flow (and When Not To)
Drafty roll-up doors? Crank to 40 CFH. Tight booth with no air movement? 15–20 CFH keeps the gauge happy and the wallet fatter. Too high and you suck in turbulence—hello, porosity worms.
Polarity and Gas Choices for Different Metals
MIG is almost always DCEP (electrode positive) for steel. Flip to DCEN only for some aluminum spool guns—check your manual. Stainless calls for tri-mix (helium/argon/CO2) if you’re chasing pretty beads that don’t sugar.
Step-by-Step MIG Settings Adjustment Process I Use on Every New Job
- Clean the joint: Wire brush, acetone wipe, no mill scale or rust.
- Set base voltage: Pick from the door chart or my table above.
- Dial wire speed: Start 20% below chart, weld a 6-inch bead on scrap.
- Listen and look: Steady hiss, slight crown, no excessive spatter = good.
- Fine-tune: +0.5 V or +10 ipm until the bead stacks clean.
- Test coupon: Bend it, break it, etch it if code requires.
I keep a logbook in the toolbox—material, thickness, settings, travel speed—so the next guy isn’t reinventing the wheel.
Travel Speed and Gun Angle: The Human Side of the Equation
Settings mean nothing if you’re racing or crawling. Aim for 10–15 inches per minute on 1/8-inch fillets. Push angle 10–15° for better gas coverage on flat; drag 5–10° on vertical-up to keep the puddle in place.
Pro Tip for Consistent Travel Speed
Tape a metronome app to 80 bpm—one bead width per beat. Sounds goofy, works like magic.
Adjusting Settings for Different Joint Types
Butt Joints in Thin Sheet
Lower voltage, slower wire speed, 1/16-inch gap, ceramic backing if possible. I once welded 16-gauge box tubing with 16.5 V and 120 ipm—beads you could shave with.
T-Joints and Lap Joints
Slightly higher heat to wash both legs. Push the gun toward the vertical leg to avoid undercut.
Vertical-Up Progression
Drop voltage 1–2 V, reduce wire speed 15–20%, weave side-to-side no wider than 3x wire diameter. Shelf the puddle like stairs.
Machine-Specific Quirks I’ve Learned the Hard Way
Miller Multimatic 215 auto-sets decent starting points, but always override for real penetration. Hobart Handler 140 needs the tap bumped one higher than the chart suggests on thick stuff. If your machine has synergy mode, use it for learning—then turn it off and learn the knobs.
Troubleshooting Common MIG Setting Problems
Excessive Spatter
- Lower voltage 1 V
- Check ground clamp contact
- Switch to 90/10 gas if running straight CO2
Porosity Like Swiss Cheese
- Increase gas flow 5 CFH
- Shorten stick-out to 3/8 inch
- Clean the joint again—oil hides
Lack of Fusion
- Raise voltage 1 V
- Slow travel speed
- Ensure 100% root opening on butts
Settings for Aluminum MIG: Spool Gun Secrets
Push the boat out for a dedicated spool gun. 100% argon at 25–30 CFH, 0.035 5356 wire, 22–24 V on 1/8-inch 6061. Preheat thick stuff to 200 °F to avoid crack city.
Safety Reminders Before You Pull the Trigger
Auto-darkening helmet on 10–11 shade, leather gloves, FR jacket, no polyester melting to your skin. Check hoses for leaks—argon hissing near the regulator means replace the O-ring tonight, not tomorrow.
Building a Personal MIG Settings Cheat Sheet
Grab a piece of 1/8-inch plate, mark 6-inch sections, run beads at different voltage/wire combos. Photograph, label, laminate, stick it on the machine. Your future self will thank you.
Conclusion: Dial It In and Weld With Confidence
Master how to adjust MIG welder settings, and you’re no longer guessing—you’re controlling heat, filler, and gas like a conductor. Your beads will look pro, your joints will hold, and you’ll save wire, gas, and grind time.
Next time you fire up the gun, start conservative, listen to the arc, and tweak one knob at a time. Pro tip: always weld a test bead on scrap the same thickness and position as your real work—five minutes of practice beats an hour of rework every single day.
FAQs
What wire size should I use for MIG welding 1/4-inch steel?
For 1/4-inch mild steel, 0.035-inch ER70S-6 runs sweet at 22–24 volts and 200–250 ipm. Gives good penetration without burning through.
Can I MIG weld without gas?
Yes, with flux-cored wire (FCAW-S). No bottle, but more spatter and slag to chip. Great for windy outdoor repairs.
How often should I change MIG contact tips?
Every 80–100 lbs of wire or when the hole ovalizes. Carry spares in your pocket—downtime kills profit.
Why does my MIG arc sound erratic?
Check drive roll tension—too tight flattens wire, too loose slips. Clean the liner with compressed air every coil change.
Is higher voltage always better for thicker metal?
Not always. Past 28 volts on 3/8-inch, you risk burn-through on the root. Step up to 0.045 wire and spray arc instead.
