MIG welding is a versatile and popular welding process used for various types of metals. One of the key factors that determine the quality of a MIG weld is the wire feed speed and voltage settings. These two parameters play a critical role in ensuring that the weld is strong, clean, and reliable.
The relationship between wire feed speed, voltage, and how to calculate the correct settings is essential for both beginners and experienced welders.
We will explore MIG welding wire speed and voltage, explain how to calculate the wire feed speed, and provide a useful chart to guide you in setting your machine correctly.
Image by everlastgenerators
MIG Welding Settings
Before diving into wire feed speed and voltage settings, it’s important to have a basic understanding of MIG welding. MIG (Metal Inert Gas) welding, also known as Gas Metal Arc Welding (GMAW), uses a continuous wire electrode that is fed through a welding gun, creating an electric arc between the wire and the metal.
The arc melts the wire and the metal, fusing them together. The process is shielded by an inert gas, typically argon or a mix of argon and carbon dioxide, to protect the weld from contamination.
MIG welding is preferred for its speed, ease of use, and ability to produce clean welds on thin to medium-thickness metals like steel, stainless steel, and aluminum. Achieving the right balance between wire feed speed and voltage is crucial for ensuring a successful weld.
Wire Feed Speed in MIG Welding
Wire feed speed refers to the rate at which the welding wire is fed through the gun into the weld pool. It is measured in inches per minute (IPM) or millimeters per minute (MMP). The wire feed speed controls the amount of filler metal being deposited into the weld, which affects the size and penetration of the weld bead.
Too high a wire feed speed can result in excessive spatter, poor penetration, and an irregular weld bead. A wire feed speed that is too low can lead to insufficient filler metal, causing weak welds or poor fusion between the materials.
Voltage in MIG Welding
Voltage in MIG welding controls the heat of the arc and the overall stability of the weld. It determines the arc length and influences the width of the weld bead. The correct voltage setting is necessary to produce a smooth and consistent weld.
If the voltage is set too high, the arc can become too wide, leading to excessive heat and burn-through. If the voltage is too low, the arc may become unstable, resulting in a narrow and uneven bead with poor penetration.
Calculating Wire Feed Speed
Calculating the wire feed speed in MIG welding depends on several factors, including the type of metal being welded, its thickness, the wire diameter, and the desired weld strength. The goal is to ensure that the wire feed speed matches the selected voltage setting for optimal weld quality.
Here is a step-by-step guide to calculating wire feed speed:
Step 1: Determine Metal Thickness and Wire Diameter
The first step in calculating wire feed speed is to identify the thickness of the metal being welded and the diameter of the welding wire. Thicker metals generally require a slower wire feed speed and higher voltage, while thinner metals need a faster wire feed speed and lower voltage. Common wire diameters range from 0.023 to 0.045 inches.
Step 2: Choose the Right Voltage Setting
Once the metal thickness and wire diameter are known, you can set the voltage accordingly. Voltage settings typically range from 16 to 22 volts, depending on the material and its thickness. Higher voltages are used for thicker materials, while lower voltages are better suited for thinner metals.
Step 3: Calculate Wire Feed Speed
The wire feed speed is directly related to the welding current (amperage). A general rule of thumb is that for every 1 amp of welding current, you need approximately 1 inch of wire feed speed. To calculate the wire feed speed, you can use the following formula:
Wire Feed Speed (inches per minute) = Amperage x Wire Feed Factor
The wire feed factor varies based on the wire diameter:
- For 0.023-inch wire, the factor is approximately 3.5.
- For 0.030-inch wire, the factor is around 2.5.
- For 0.035-inch wire, the factor is about 2.
- For 0.045-inch wire, the factor is 1.6.
Step 4: Fine-Tune the Settings
After calculating the wire feed speed and voltage, it’s essential to perform a test weld on a scrap piece of metal. This will allow you to fine-tune the settings based on the appearance of the weld bead, penetration, and spatter levels.
MIG Welding Wire Speed and Voltage Chart

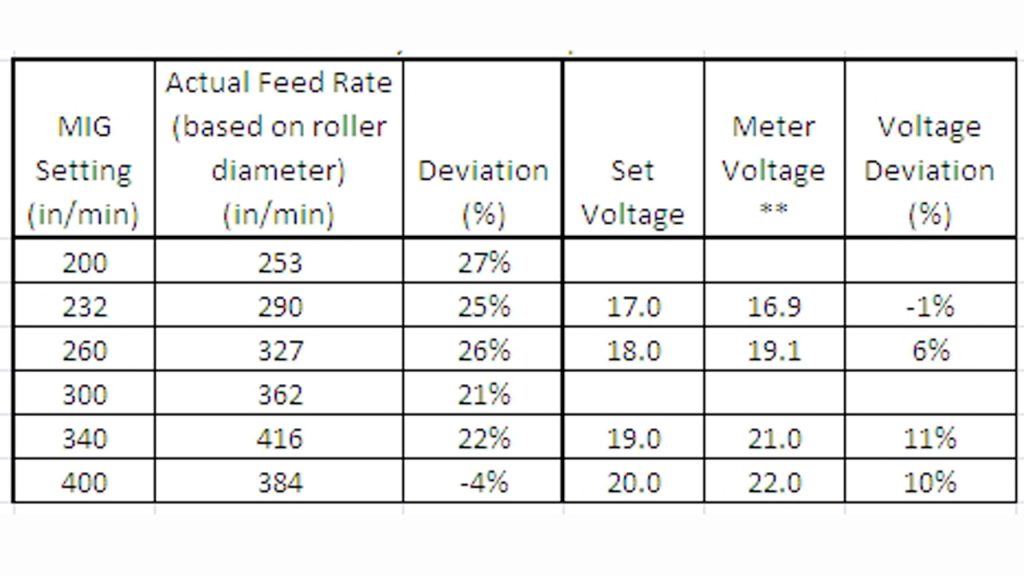

To make the process of setting wire feed speed and voltage easier, here is a general chart that provides guidelines for common wire diameters and metal thicknesses. Keep in mind that these are starting points and may require adjustments based on your specific welding conditions.
| Metal Thickness (inches) | Wire Diameter (inches) | Wire Feed Speed (IPM) | Voltage (Volts) |
|---|---|---|---|
| 0.035 | 0.023 | 100-180 | 16-18 |
| 0.060 | 0.030 | 180-260 | 17-19 |
| 0.125 | 0.035 | 200-300 | 18-20 |
| 0.250 | 0.045 | 250-350 | 19-22 |
This chart provides a general range for wire feed speed and voltage settings based on common wire diameters and material thicknesses. These settings are not set in stone and may require fine-tuning to suit your specific project.
Factors Affecting Wire Feed Speed and Voltage
Several factors can impact the ideal wire feed speed and voltage settings for MIG welding. Understanding these variables will help you make better adjustments and improve your welding results.
Type of Metal
Different metals have different melting points and conductivity levels, which affect how they react to heat during welding. Steel, for example, requires different wire feed speed and voltage settings than aluminum or stainless steel. Be sure to adjust your settings accordingly based on the type of metal you are working with.
Welding Position
The position of the weld (flat, vertical, horizontal, or overhead) can influence the wire feed speed and voltage settings. Welding in vertical or overhead positions often requires slower wire feed speeds and lower voltage to prevent excessive spatter and burn-through.
Shielding Gas
The type of shielding gas used in MIG welding can also affect the wire feed speed and voltage. A mixture of argon and carbon dioxide is commonly used, but some applications may require pure argon or a different gas mix. Adjusting the gas flow rate and composition may necessitate changes to your wire feed speed and voltage settings.
Welder Skill Level
Experience plays a significant role in how well you can fine-tune your welding settings. Skilled welders may be able to operate at higher wire feed speeds and voltage settings, while beginners may need to start with more conservative settings to avoid defects in the weld.
Problems and Solutions in Wire Feed Speed and Voltage Settings
MIG welding requires a balance between wire feed speed and voltage. When these two settings are not aligned, several issues can arise. Here are some common problems associated with incorrect wire feed speed and voltage settings, along with solutions for each.
Excessive Spatter
Problem: Too much wire feed speed for the voltage setting can cause excessive spatter, making the weld messy and harder to clean.
Solution: Reduce the wire feed speed or increase the voltage slightly to balance the arc.
Poor Penetration
Problem: Insufficient wire feed speed or voltage results in weak welds with poor penetration.
Solution: Increase both the wire feed speed and voltage to achieve deeper penetration.
Burn-Through
Problem: High voltage or wire feed speed on thin metals can cause burn-through, where the arc melts through the metal.
Solution: Reduce both the voltage and wire feed speed to prevent overheating the metal.
Irregular Weld Bead
Problem: Incorrect wire feed speed or voltage settings can result in an uneven or irregular weld bead.
Solution: Fine-tune the settings based on the weld bead appearance. Adjust the wire feed speed and voltage until the bead is smooth and consistent.
Conclusion
MIG welding is a versatile process, but achieving the perfect weld requires careful attention to wire feed speed and voltage settings. By understanding how these two parameters work together and using a wire feed speed and voltage chart as a guide, you can create strong, clean welds.
Always remember to adjust your settings based on factors like metal thickness, wire diameter, and welding position. With practice and fine-tuning, you’ll be able to master the art of MIG welding and produce high-quality welds every time.
